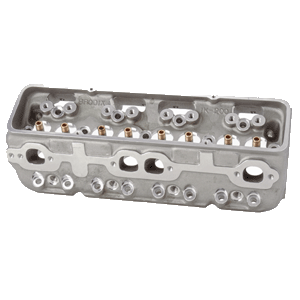

Brodix 180 Iron Killer Chev SB Aluminum Head
These Chev SB heads offer the only two things that matter... performance and price! Features for the IK180 include a revolutionary ultra-light casting, versatile 180cc intake ports that are specifically designed for optimum versatility, and 70cc combustion chambers. Standard features are A-356 virgin aluminum alloy, phosphorous bronze valve guides, 2.020"/1.600" valves, and straight spark plug design.
Part Type: Cylinder Head
Application: Chevrolet Small Block
Cylinder Head Material: A356 Aluminum
Bare or Assembled: Bare
Combustion Chamber Size: 70cc
CNC Machined Combustion Chambers: No
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Intake Port Volume: 180cc
CNC Machined Intake Port: No
Intake Port Flow: 245 cfm @ .600" Lift / 28"
Intake Port Location: Standard
Intake Port Shape: Rectangular
Intake Port Dimensions:
Suggested Intake Gaskets: Fel-Pro 1204 or Equivalent
Exhaust Port Volume: 60cc
CNC Machined Exhaust Port: No
Exhaust Port Flow: 178 cfm @ .600" Lift/ 28"
Exhaust Port Location: Standard
Exhaust Port Shape: D-Shape
Exhaust Port Dimensions:
Suggested Exhaust Gaskets: Fel-Pro 1404 or Equivalent
Spark Plug Style: Straight
Suggested Spark Plug:
Valve Guides: Yes
Valve Guide Spacing:
Valve Stem Diameter: 11/32" (.3415")
Valve Seats: No
Valve Job:
Intake Valve Diameter: 2.020"
Intake Valve Included: No
Exhaust Valve Diameter: 1.600"
Exhaust Valve Included: No
Suggested Valve Length: 4.965"
Valve Spring Pockets:
Valve Springs Included: No
Valve Spring Application: NA
Valve Springs Retainers Included: No
Valve Locks Included: No
Valve Seals Included: No
Rocker Studs Included: No
Guide Plates Included: No
Valve Cover Mounting Style: Perimeter
Steam Holes Drilled: No
Heat Crossover: No
Suggested Head Bolts: ARP 134-3601 or Equivalent
Suggested Head Studs: ARP 134-4001 or Equivalent
Suggested Stud Girdle: Power Products 43100K, Howards Cams 90100, Jomar 1104
Head Bolt Torque with Oil: 70 ft./lbs.
Rocker Stud Torque with Oil: 45 ft./lbs.
Intake Bolt Torque with Oil:
Manufacturer: Brodix
Manufacturer's Part Number: 1020001
Weight: 46 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Pair
|
