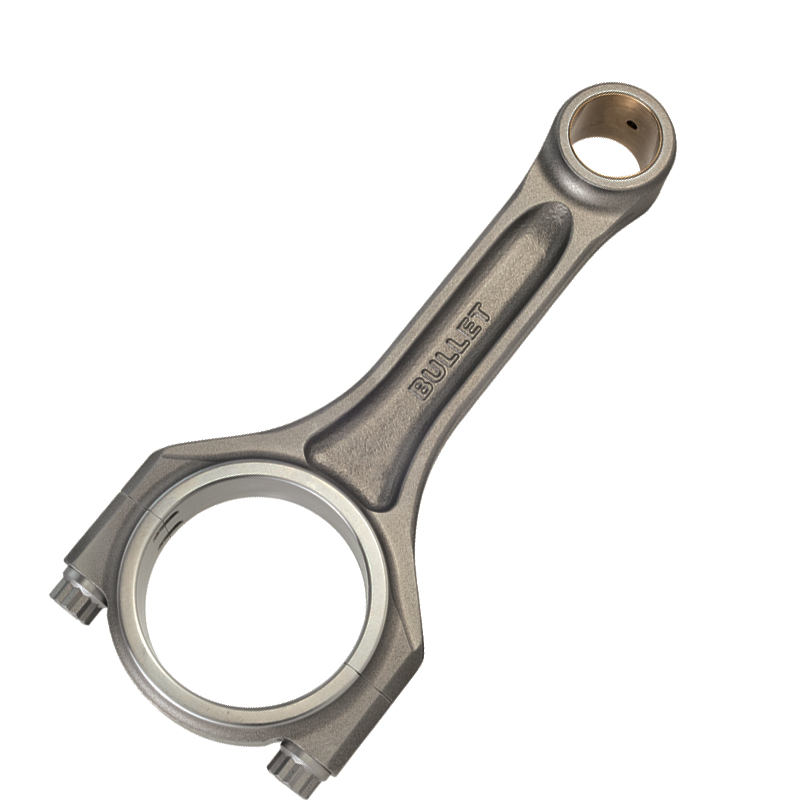

CP-Carrillo Bullet Series Connecting Rods
These connecting rods include the advanced features and improvements that CP-Carrillo has developed through rigorous testing and R&D. Manufactured from proprietary blend of steel on a near net forging for structural support and durability, these Bullet connecting rods are factory replacement, race ready, straight out of the box. Proudly made in the USA.
• Manufactured from 4330 modified forgings
• Rods come standard with WMC H-11 Tool Steel Fasteners
• Tight tolerances
• Balanced to + or - 1 gram
• Made in the USA
Part Type: Connecting Rods
Application: Chevrolet Small Block
Connecting Rod Beam Style: I-Beam
Material: 4330 Steel
Connecting Rod Finish: Shot-Peened
Magnafluxed: Yes
Connecting Rod Length Center to Center: 6.000”
Connecting Rod Journal: 2.000”
Housing Bore: 2.225”
Pin Bore Diameter: .927”
Big End Width: .940”
Pin End Width: 1.060”
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight: 609g
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: No
Fastener Type: Cap Screw
Fasteners: WMC H-11 7/16"
Fastener Head Style: 12 Point
Fastener Yield Strength: 220,000 psi
Fastener Torque: 75 ft./lbs.
Horsepower Rating: 800
Recommended Bearings: Clevite CB663, King CR807, ACL 8B663, Enginetech BB253J
Manufacturer: CP-Carrillo
Manufacturer's Part Number: BC20-60071
Connecting Rod Set Weight: 11.0 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold in Sets of 8
|
