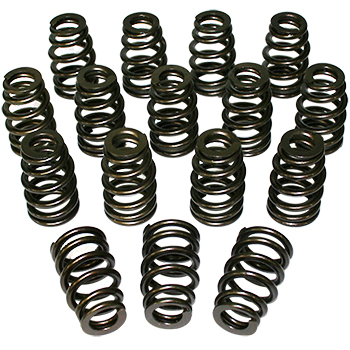

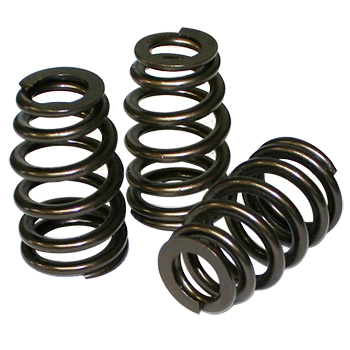

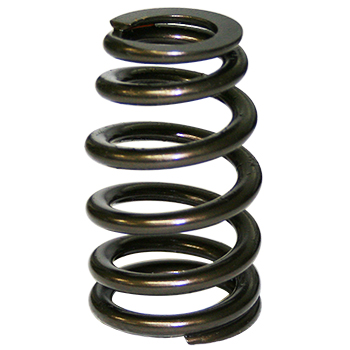

Comp Cams Beehive Valve Springs
Beehive valve springs are revolutionizing performance street applications. Because of the unique beehive design, the valve train can handle more rpm and more aggressive cam profiles for occasional bracket racing but still retain the durability for street driving. Designed for hydraulic or solid flat tappet cams as well as hydraulic rollers. Note: 26981-16 will work in most Chev small block heads with no machine work. Sets of 16.
Part Type: Valve Springs
Style: Beehive Valve Springs
Type: Beehive
Damper Included: No
Top Outer Spring Out Side Diameter (O.D.): 1.075"
Top Outer Spring In Side Diameter (I.D.): .650"
Bottom Outer Spring Out Side Diameter (O.D.): 1.415"
Bottom Outer Spring In Side Diameter (I.D.): 1.000"
Inner Spring Out Side Diameter (O.D.): NA
Inner Spring In Side Diameter (I.D.): NA
Seat Pressure: 109 @ 1.800"
Open Pressure: 284 @ 1.060"
Valve Spring Rate: 280
Maximum Suggested Lift: .650"
Coil Bind: 1.060"
Electro Polished: No
Nitrided: No
Suggested Steel Retainers: 787-16
Suggested Titanium Retainers: CCA788-16
Suggested Seat Cups: NA
Suggested Locators: NA
Manufacturer: Comp Cams
Manufacturer's Part Number: 26986-16
Packaged Weight: 3.0 lbs.
Warranty: 1 year limited warranty from the date of purchase by the original purchaser.
Quantity: Sold in Sets of 16
|
