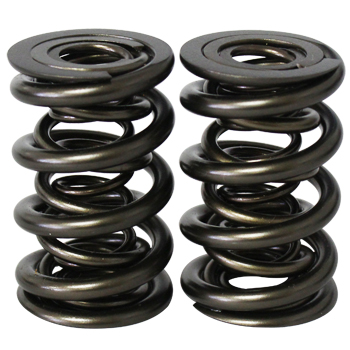

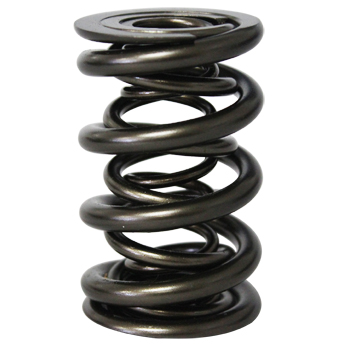

Comp Cams, Hi-Tech Roller Valve Springs
Developed to provide higher pressures and longer life. Each spring is CNC coiled, stress relieved, ground, shot-peened, and heat set. Inspected and batch tested.
Part Type: Hi-Tech Roller Valve Springs
Style: Comp Pacaloy
Type: Triple
Damper Included: No
Outer Spring Out Side Diameter (O.D.): 1.645"
Outer Spring In Side Diameter (I.D.): 1.195"
Inner Spring Out Side Diameter (O.D.): .871"
Inner Spring In Side Diameter (I.D.): .635"
Seat Pressure: 332 @ 2.100"
Open Pressure: 949 @ 1.200"
Valve Spring Rate: 686
Maximum Suggested Lift: .900"
Coil Bind: 1.130"
Electro Polished: No
Nitrided: No
Suggested Steel Retainers: NA
Suggested Titanium Retainers: 3504
Suggested Seat Cups: NA
Suggested Locators: NA
Manufacturer: Comp Cams
Manufacturer's Part Number: 948-16
Packaged Weight: 3.0 lbs.
Warranty: 1 year limited warranty from the date of purchase by the original purchaser.

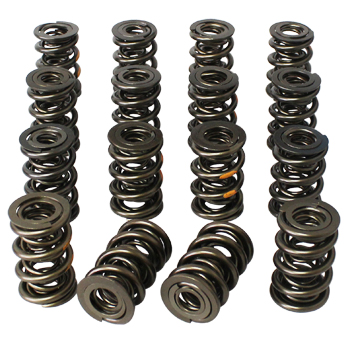

Quantity: Sold in Sets of 16
|
