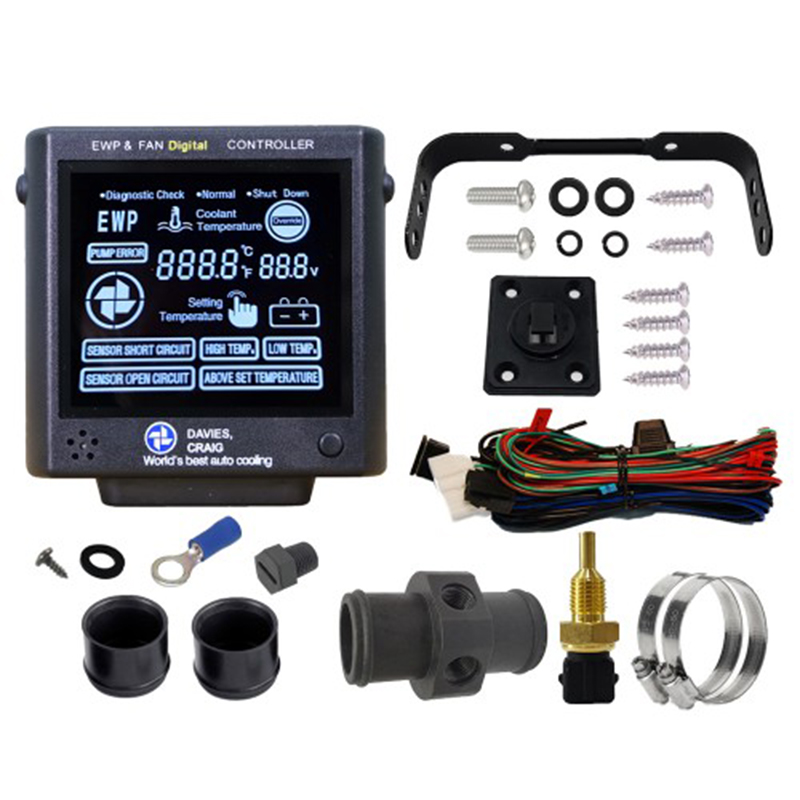

Davies Craig | Digital LCD Electric Water Pump & Fan Controller
This unique LCD Digital Controller has two specific functions. It will manage the operation of the electric water pump by varying the speed of the pump in response to the coolant temperature and manage control of your electric engine fan. The Controller has a push-button to lock in any targeted/set temperatures between 40 degrees Celsius (104 degrees F) to 110 degrees Celsius (230 degrees F). The Digital Controller will operate the engine's electric fan automatically once the engine has reached 3 degrees Celsius (5.4 degrees F) above the targeted (set) temperature. Another significant benefit is that the Controller allows the electric water pump to run on after ignition shutdown to eliminate heat soak. Suitable for 12v & 24v electrical systems, with relevant displays. Celsius or Fahrenheit display option.
Part Type: Digital LCD Electric Water Pump & Fan Controller
Application: Universal
Pump Material: Aluminum
LCD Display Height: 2.190”
LCD Display Width: 2.540”
Voltage Range: 12V DC to 29V DC
Maximum Current: 12 Amps
EWP Digital Controller Assembly Included: Yes
Temp Sensor Included: Yes, 1/4 NPT
In-Line Adaptor Included: Yes | 35mm ends – hose size fitting
Hose Clamps Included: Yes
Ring Terminal Included: Yes
Cooling Temperature Sensor Included: Yes
Wiring Harness Included: Yes, with 10 amp fuse
Instructions Included: Yes
Rubber Sleeves Included: Yes | 3mm (Increase in-line adaptor to fit hose size 38mm, for larger hoses, 6mm sleeves are needed but not included in kit)
Manufacturer: Davies Craig
Manufacturer's Part Number: 8002
Warranty: Sold without warranty, expressed or implied
Quantity: Sold as Kit
|
