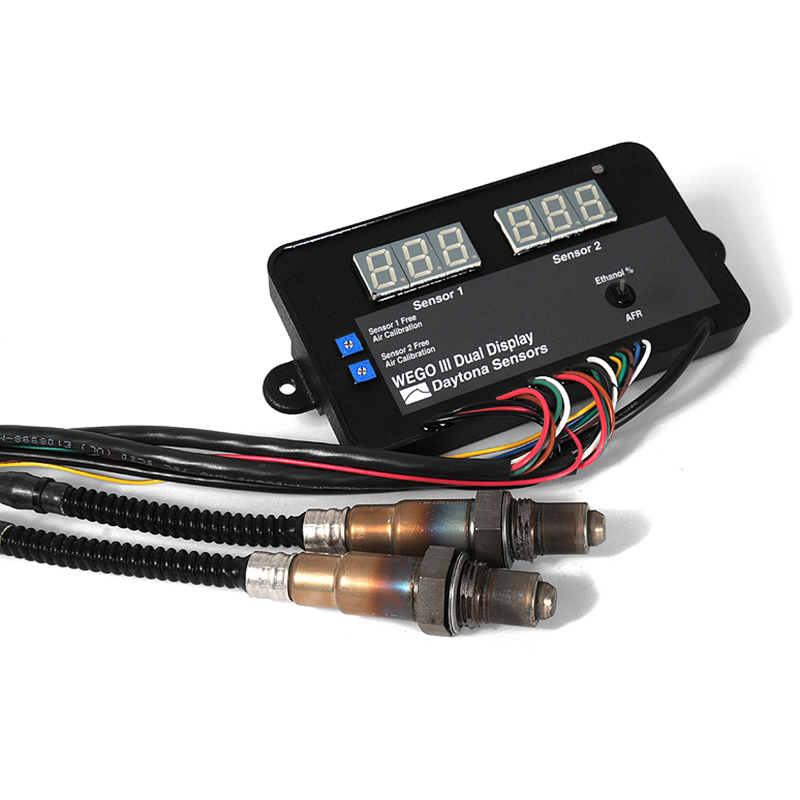

Daytona Sensors WEGO III Wide Band Air Fuel Ratio Meters w/ Display & Data Logging
These versatile tuning aids are designed for all carbureted and fuel injected engines. Displays air/fuel ratio (AFR) and logs over 2 hours data including AFR, engine RPM, and a spare 0-5V analog input for sensors such as manifold pressure or throttle position. Ultra-bright daylight readable blue display with automatic dimming under low light display. Use the WEGO Log software (included) to view data on a chart recorder type screen. Highly accurate with less than ±0.10 AFR error over 10.3-19.5 AFR range (±0.007 Lambda error over 0.70-1.33 Lambda range). Can be used on road or dyno testing. Easy free-air calibration procedure corrects for sensor aging effects. 0-5V analog AFR output for interface to dyno instrumentation. Operates on 11-16 supply voltage, allows operation from battery on small engines and race vehicles without an alternator. Current draw is approx. 1 amp per channel. For Dual Exhaust Applications using (2) O2 sensors (Two Channel). Systems included WEGO display unit, 96" harness, Bosch LSU4.2 5-wire wide band oxygen sensors, 18 x 1.5mm weld nut for mounting sensor to exhaust pipe, and WEGO software on CD-ROM. Software (included) compatible with Windows XP/Vista/7/8/10.
• Displays Air/Fuel Ratio (AFR) & Logs Over 2-Hours Data
• For Carbureted & Fuel Injected Applications
• Highly Accurate
• Easy Free-Air Calibration
• Ultra-Bright Daylight Readable Auto Dimming Blue Display
• Fully Sealed Waterproof Display
• Designed for Screw-On/Bolt-On Type Permanent Mount
• View data in real time in addition to downloading
• Hardwired USB cable for data download
• WEGO Log software included
• One Year Limited Factory Warranty
Part Type: Wide Band Air Fuel Ratio Meter w/ Data Logging
Application: Universal Single Exhaust, Carbureted & Fuel Injection Engines
Built-In Data Logging: Yes
Data Logging Hours: 2 Hours +
Software Included: Yes, WEGO Log CD-ROM, Windows XP/Vista/7/8/10
Display: Ultra-Bright Blue LED w/ Auto Dim
Waterproof Display: Yes
Oxygen Sensor(s) Included: Two
Oxygen Sensor Type: Bosch LSU4.2 5-wire Wide Band
O2 Sensor Bung Kit Included: Yes, 18 mm x 1.5 mm Weld-Nuts
Accuracy: Less than ±0.10 AFR error over 10.3-19.5 AFR Range
Supply Voltage: 11-16 Volts
USB Interface: Yes
Meter Size: 5.6"L x 3.2"W x 0.9"H
Harness Length: 96 inches
Manufacturer: Daytona Sensors
Manufacturer's Part Number: 112005
Weight:
Warranty: One Year Limited Factory Warranty
Quantity: Sold as Kit
|
