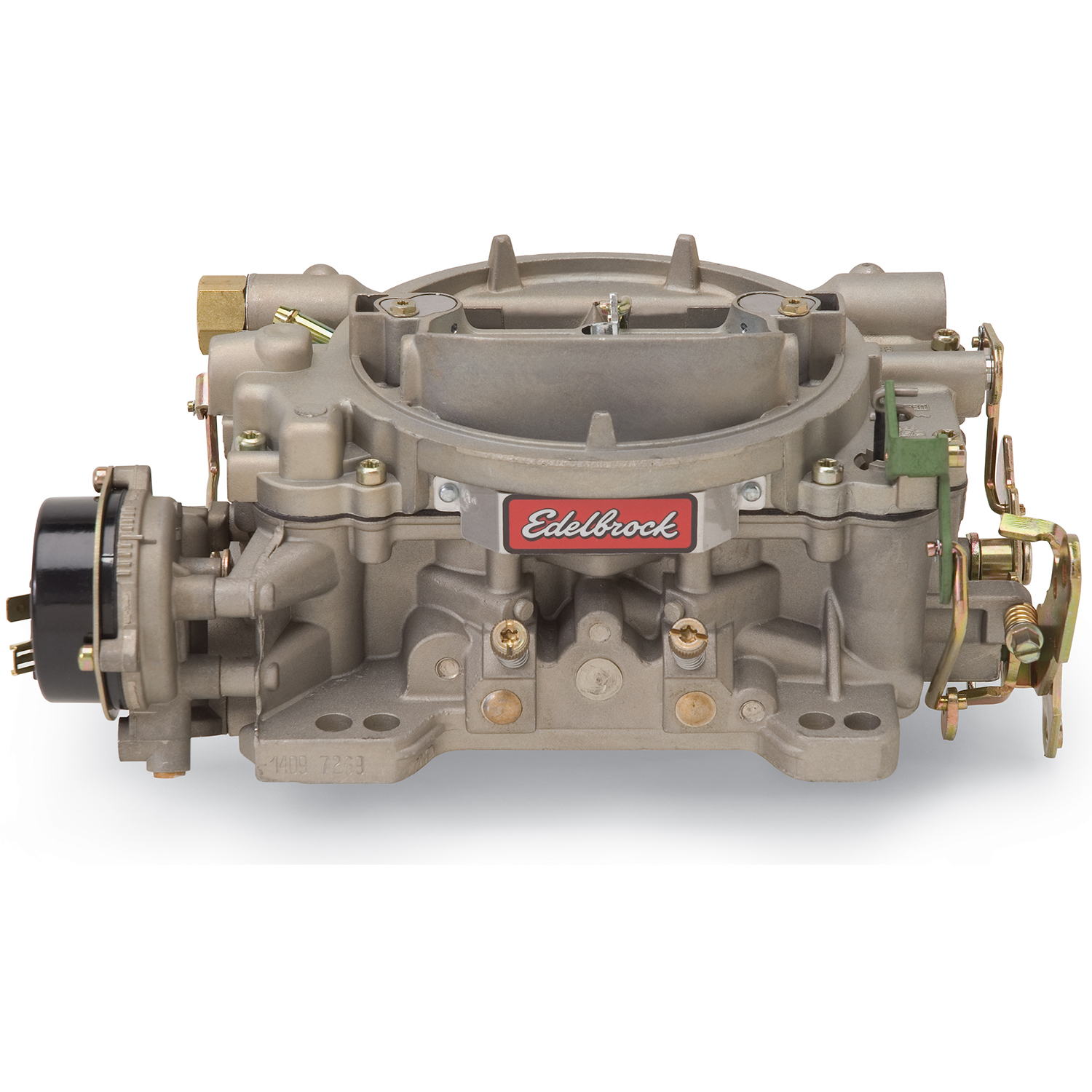

Edelbrock Marine Carburetor, 600 cfm, Square Flange, Electric Choke |
|
 |
Edelbrock Marine Carburetors
Designed and calibrated for optimum marine performance. Complies with U.S. Coast Guard safety standards. Cast surfaces are iridited with Teflon-coated shafts and pump arms for maximum protection. Modified bowl venting, specially designed throttle shafts, an accelerator pump seal, a 3/8” inverted flare fuel inlet, tube in airhorn for fuel pump vent, a 5-1/8" flame arrestor flange, a universal throttle lever, and revised secondaries for improved transient performance.
Part Type: Carburetor
Model: Marine Series
Application: Marine Performance
Fuel Type: Gasoline
Number of Barrels: 4
CFM: 600
Choke Type: Electric
Fuel Inlet: Single
Fuel Inlet Fitting Size: 5/8"-20 to 3/8" Hose
Secondary Type: Air Valve
Throttle Linkage Type: Universal
Ford Auto Trans Kickdown: No (Use EDE1483)
Main Body: Aluminum
Primary Venturii Diameter: 1-3/16"
Secondary Venturii Diameter: 1-9/16"
Base Plate: Integral with Main Body
Base Plate Pattern: 5.16" x 3.46"
Primary Throttle Bore Diameter: 1-7/16"
Secondary Throttle Bore Diameter: 1-11/16"
Fuel Bowls: Cast into Main Body
Externally Adjustable Floats: No
Fuel Bowl Sight Windows: No
Primary Main Jets: .098"
Secondary Main Jets: .101"
Metering Rods: .068" x .047"
Step-Up Spring: Orange (5" Hg)
Needle & Seat: .0935"
Float Height: 7/16"
Float Drop (± 1/4”): 1-1/4"
Pump Drive Link Location: Middle Hole
Accelerator Pump Nozzle Diameter: .028"
Finish: Dichromate
Vacuum Port - Timed (Spark): 1
Vacuum Port - Full Vacuum: 1
PCV Port: 1
Manufacturer: Edelbrock
Manufacturer's Part Number: 1409
Weight: 9.0 lbs.
Warranty: Limited 90-day material and workmanship
Quantity: Sold as Each
Note: Does not work with A.O.D. transmissions.
|
|
|
