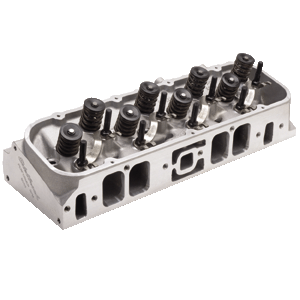

Edelbrock Performer RPM Aluminum Chev BB Head
Using high efficient ports and state-of-the-art combustion chamber shapes, these heads offer improved performance throughout the rpm range for great throttle response and top end horsepower. Top quality features include threaded inserts in rocker studs and exhaust bolt holes for superior strength and durability. Cast and machined at Edelbrock's manufacturing facilities in the USA.
Assemblies feature 2.190"/1.880" stainless steel valves, 1.550" dual springs, 7 deg. retainers and locks, studs, and guide plates.
Note: spark plug is closer to center of bore, will interfere with most high-dome pistons. Use pistons specifically designed for Edelbrock heads for high compression applications.
Part Type: Cylinder Head
Application: Chevrolet Big Block
Cylinder Head Material: Aluminum
Bare or Assembled: Assembled
Combustion Chamber Size: 110cc
CNC Machined Combustion Chambers: No
Intake Valve Angle: 26
Exhaust Valve Angle: 26
Intake Port Volume: 290cc
CNC Machined Intake Port: No
Intake Port Flow: 309 cfm @ .600" Lift/ 28"
Intake Port Location: Standard
Intake Port Shape: Oval
Intake Port Dimensions:
Suggested Intake Gaskets: Fel-Pro 1212 or Equivalent
Exhaust Port Volume: 110cc
CNC Machined Exhaust Port: No
Exhaust Port Flow: 218 cfm @ .600" Lift/ 28"
Exhaust Port Location: Standard
Exhaust Port Shape: D-Shaped
Exhaust Port Dimensions:
Suggested Exhaust Gaskets: Fel-Pro 1410 or Equivalent
Spark Plug Style:
Suggested Spark Plug: .460" reach, 5/8" hex plug
Valve Guides: Yes
Valve Guide Spacing: 1.970" Stock Location
Valve Stem Diameter: 11/32" (.3415")
Valve Seats: Yes
Valve Job: 3-Angle
Intake Valve Diameter: 2.190"
Intake Valve Included: Yes
Exhaust Valve Diameter: 1.880"
Exhaust Valve Included: Yes
Suggested Valve Length:
Valve Spring Pockets:
Valve Springs Included: Yes, 1.460" Dual
Valve Spring Application: Hydraulic Roller/Mechanical Flat Tappet, 120lbs. Seat, 425lbs. Open, .560" Max Lift
Valve Springs Retainers Included: Yes
Valve Locks Included: Yes (7 Degree)
Valve Seals Included: Yes
Rocker Studs Included: Yes (7/16")
Guide Plates Included: Yes
Valve Cover Mounting Style: Perimeter Bolt
Steam Holes Drilled: No
Heat Crossover: No
Suggested Head Bolts:
Suggested Head Studs:
Suggested Stud Girdle:
Head Bolt Torque with Oil: 75 ft./lbs.
Rocker Stud Torque with Oil: 55 ft./lbs.
Intake Bolt Torque with Oil:
Manufacturer: Edelbrock
Manufacturer's Part Number: 60459
Weight:
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
|
