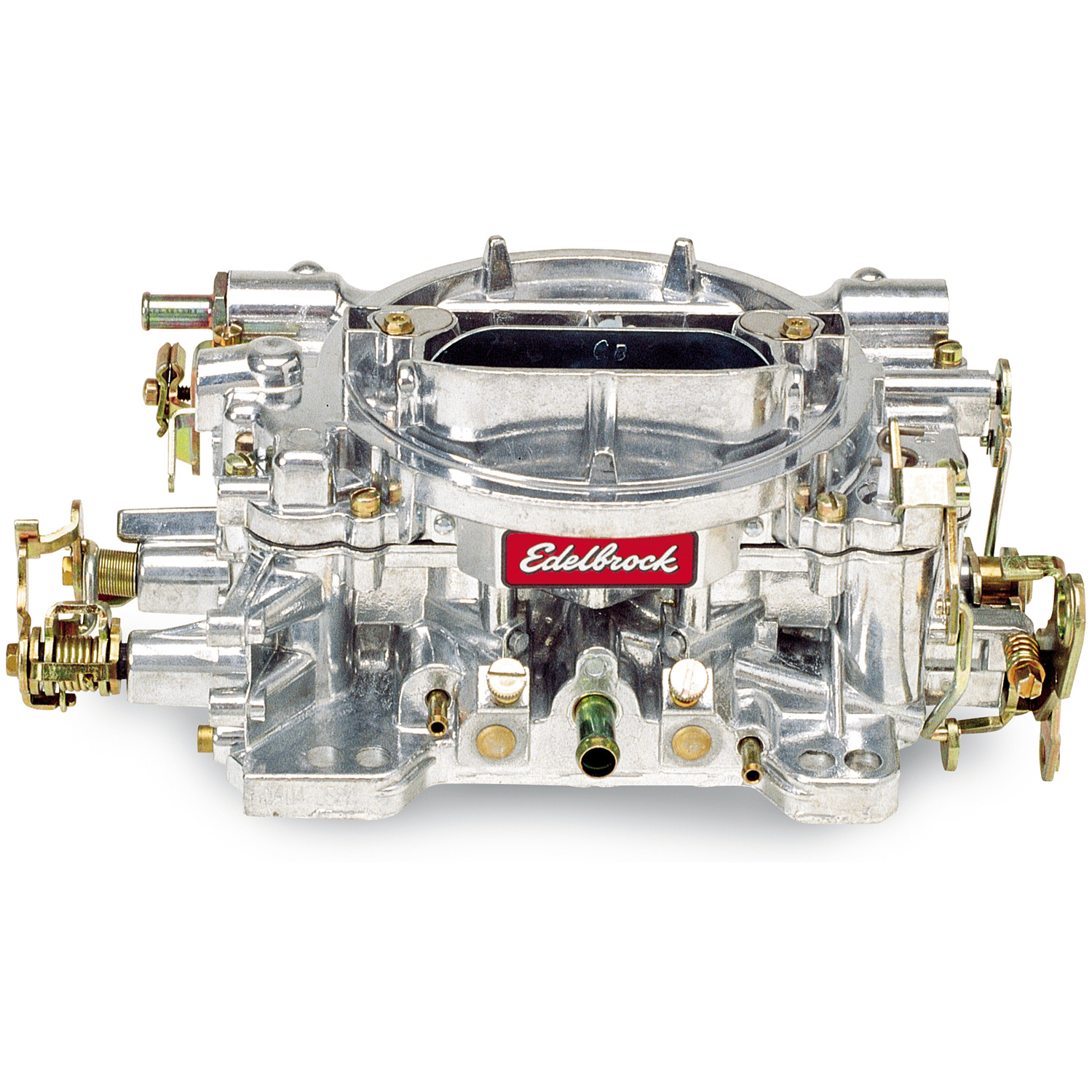

Edelbrock Performer Series Carburetors
Dependable street performance and smooth throttle response throughout the power band. Float levels are factory set, adjustments are rarely needed. Two-piece design means no gasket below the fuel level for leak free operation. Change jets, adjust floats and replace needle/seats without draining fuel or removing carb from manifold.
Part Type: Carburetor
Model: Performer Series
Application: Street Performance
Fuel Type: Gasoline
Number of Barrels: 4
CFM: 750
Choke Type: Manual
Fuel Inlet: Single
Fuel Inlet Fitting Size: 5/8"-20 to 3/8" Hose
Secondary Type: Air Valve
Throttle Linkage Type: Universal
Ford Auto Trans Kickdown: No (Use EDE1483)
Main Body: Aluminum
Primary Venturii Diameter: 1-7/16"
Secondary Venturii Diameter: 1-9/16"
Base Plate: Integral with Main Body
Base Plate Pattern: 5.16" x 3.46"
Primary Throttle Bore Diameter: 1-11/16"
Secondary Throttle Bore Diameter: 1-11/16"
Fuel Bowls: Cast into Main Body
Externally Adjustable Floats: No
Fuel Bowl Sight Windows: No
Primary Main Jets: .113"
Secondary Main Jets: .107"
Metering Rods: .071” x .047"
Step-Up Spring: Orange (5" Hg)
Needle & Seat: .0935"
Float Height: 7/16"
Float Drop (± 1/4”): 1-1/4"
Pump Drive Link Location: Top Hole
Accelerator Pump Nozzle Diameter: .035"
Finish: Silver
Vacuum Port - Timed (Spark): 1
PCV Port: 1
Emissions: For use on Pre-Pollution Controlled Vehicles
Manufacturer: Edelbrock
Manufacturer's Part Number: 1407
Weight: 8.8 lbs.
Warranty: Limited 90-day material and workmanship
Quantity: Sold as Each
Note: Does not work with A.O.D. transmissions.
|
