FAST EZ-EFI 2.0 Self-Tuning Fuel Injection System
The next generation of the EZ-EFI with even more features. These systems are capable of up to 1200 HP and compatible with nitrous or E85 fuels.

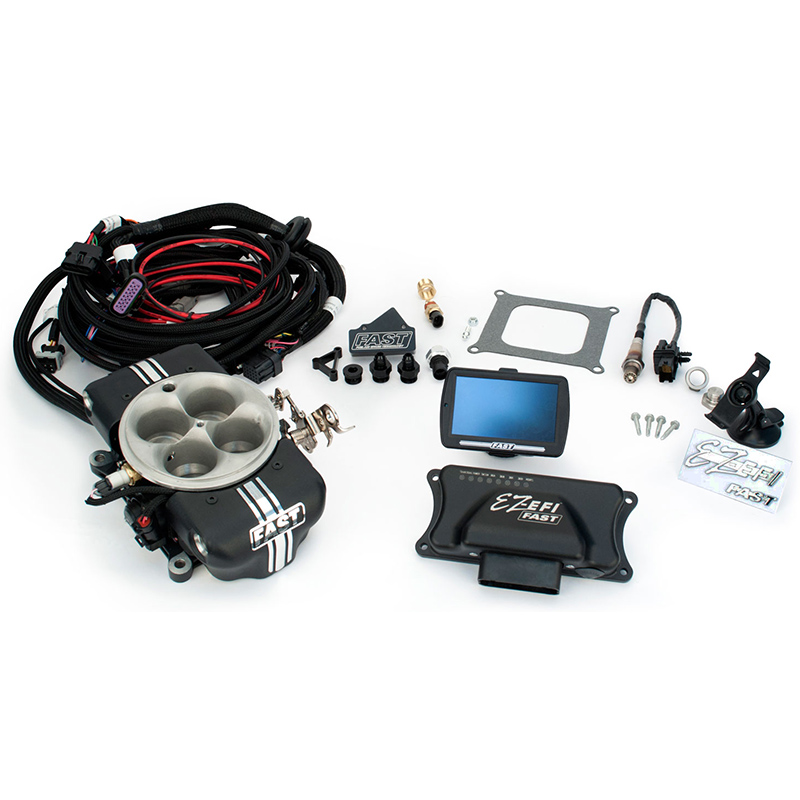

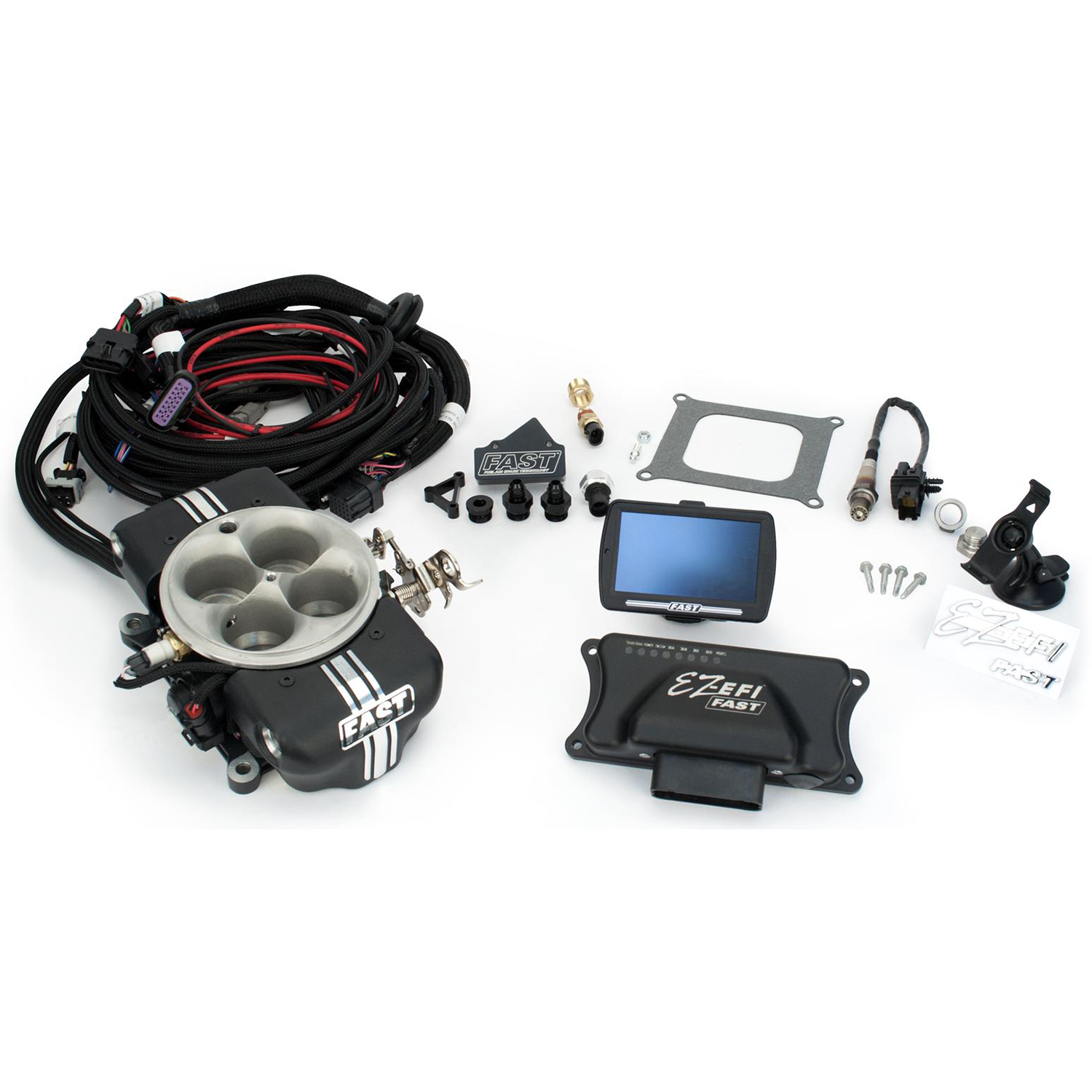

Base Kit Includes: Engine Control Unit (ECU), Color Touch screen Hand-Held Unit w/ Mount, 1200 HP Capable Throttle Body w/ Integrated Fuel Injectors, Sensors & Fuel Rails, Fully Mesh-wrapped Main Harness, Fuel Pressure Adapter & Sensor, Wide-Band O2 Sensor, Installation Hardware, & Chrome EZ-EFI Badge.
- Higher flowing & higher HP capable throttle body for engines making up to 1200 HP.
- Maintains ease-of-use that doesn't require a laptop or previous tuning experience.
- Officially tuned and compatible with E85 fuels.
- Fuel pulse damper creates precise fuel control.
- Features market's fewest connection wires, with sleek wiring harness & mess-type loom.
- ECU includes LED diagnostic feature with on-board EZ-Test indicator lights.
- Hand-Held features a color touch screen and shares the same mounting points as Garmin Nuvi GPS for almost limitless mounting options.
- Compatible with multiple fuel pump options.
- EZ-Solutions option allow integration with most common ignition systems.
- Made in USA.
- Limited Lifetime Warranty.
Part Type: Fuel Injection System
Application: Universal 4bbl
Horsepower Rating: Up to 1200 HP
Self-Tuning: Yes
Injection Style: 1100 CFM Throttle Body
Metering Style: Speed Density
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4bbl Square Bore
Throttle Body Material: Cast Aluminum
Throttle Body Finish: Natural
Throttle Body Flange Style: 4150
Injectors Included: Yes, 8
Injector Size:
Venturi Quantity: 4, Annular Discharge Design
Intake Manifold Included: No
Fuel Rails Included: Yes
Fuel Inlet Ports:
Fuel Inlet Fitting:
Calibration Module Included: Yes
ECU Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes, Wide Band
O2 Sensor Bung Kit Included: Yes, Weld-On
Fuel Pump Included: No
Fuel Pressure Regulator Included: No
Boost/Vacuum Reference Port: No
Fuel Line Included: No
Pre-Fuel Filter Included: Yes
Post-Fuel Filter Included: No
Fittings Included: Yes
MAP Sensor Included: Yes
Intake Air Temperature Sensor Included: Yes
Throttle Position Sensor Included: Yes
Idle Air Control Included: Yes
Coolant Temperature Sensor: Yes
Distributor Included: No
Timing Control: Yes
Voltage Control for Fuel Pump: No
Fan Control Included: Yes
Data Logging: No
Gasket Kit Included: Yes
Manufacturer: FAST (Fuel Air Spark Technology)
Manufacturer's Part Number: 30400-KIT
Weight:
Warranty: FAST warrants that its EZ-EFI products are free from defects in material and workmanship for the lifetime of the product. This Limited Lifetime Warranty shall cover only the original purchaser. All other FAST products are covered by a Limited Warranty which covers defects in material and workmanship for a period of one year from the date of purchase. FAST's obligation under this warranty is limited to the repair or replacement of its product.
Quantity: Sold as Kit
|
