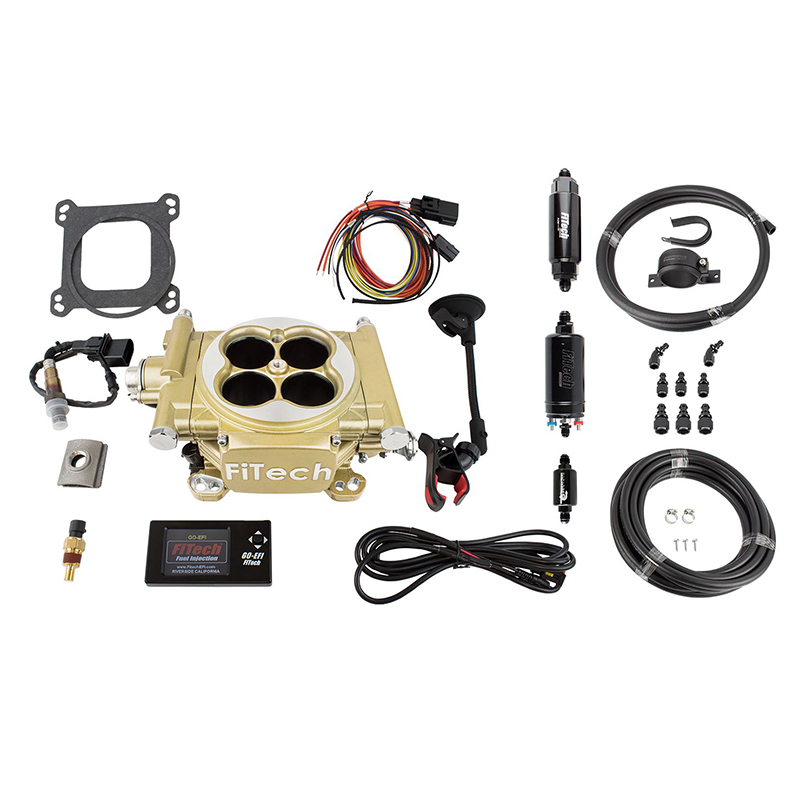

FiTech Self-Tuning EFI Master Kits
These master kits include your choice of FiTech Self-Tuning EFI systems with the addition of their Go EFI In-Line Fuel Delivery Kit. All components needed for a new installation. Saves money too.
Part Type: Fuel Injection System
Application: Universal 4bbl, For non-boosted engines, Normally aspirated applications only
Horsepower Rating: 250 to 600 HP
Self-Tuning: Yes
Injection Style: Throttle Body
Metering Style: Speed Density
Throttle Body Included: Yes, Die Cast
Throttle Body Mounting Flange: 4bbl Square Bore
Throttle Body Material: Cast Aluminum
Throttle Body Finish: Natural
Injectors Included: Yes
Injector Size: 70 lbs./hr.
Venturi Quantity: 4, Annular Discharge Design
Intake Manifold Included: No
Fuel Rails Included: Internal
Fuel Inlet Ports: 3
Fuel Inlet Fitting: -6AN
Calibration Module Included: Yes, Handheld w/ Black & White Screen & Windshield Mount
ECU Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes, Wide Band 4.2
O2 Sensor Bung Kit Included: Yes, Clamp-On or Weld-On
Fuel Pump Included: Yes
Fuel Pressure Regulator Included: Yes
MAP Sensor Included: Yes, 2.5 Bar Internal
Intake Air Temperature Sensor Included: Yes
Throttle Position Sensor Included: Yes
Idle Air Control Included: Yes
Coolant Temperature Sensor: Yes
Distributor Included: No
Timing Control: No
Voltage Control for Fuel Pump: Yes
Fan Control Included: Yes, 1
Data Logging: No
Gasket Kit Included: Yes
Manufacturer: FiTech Fuel Injection
Manufacturer's Part Number: 31005
Weight: 21 lbs.
Warranty: LIMITED WARRANTY- a.) What is Covered- This warranty is limited to repair or replacement (at their option) of any FiTech part that fails because of a defect in workmanship or materials. Implied warranty: Any warranties implied by law are limited to the duration of this warranty, (except in those states where prohibited by law). b.) How Long it is Covered- All FiTech products are warranted for a period of one year from date of original retail purchase with an original receipt showing proof of purchase. c.) Who They Cover- All FiTech warranties apply to the original purchasing consumer. d.) What They Do Not Cover- Failure of a product due to misapplication, improper installation or maintenance, misuse, abuse, unauthorized repairs, accidents, or modifications to the original design. Certain components of the EFI systems are limited to a 90 day warranty period. See separate complete Limited Warranty document for a list of specific components. e.) What We Do Not Cover (Continued)- Removal or replacement costs. Shipping Costs. Damage to related components. Costs incurred due to downtime of vehicle.
Quantity: Sold as Kit
|
