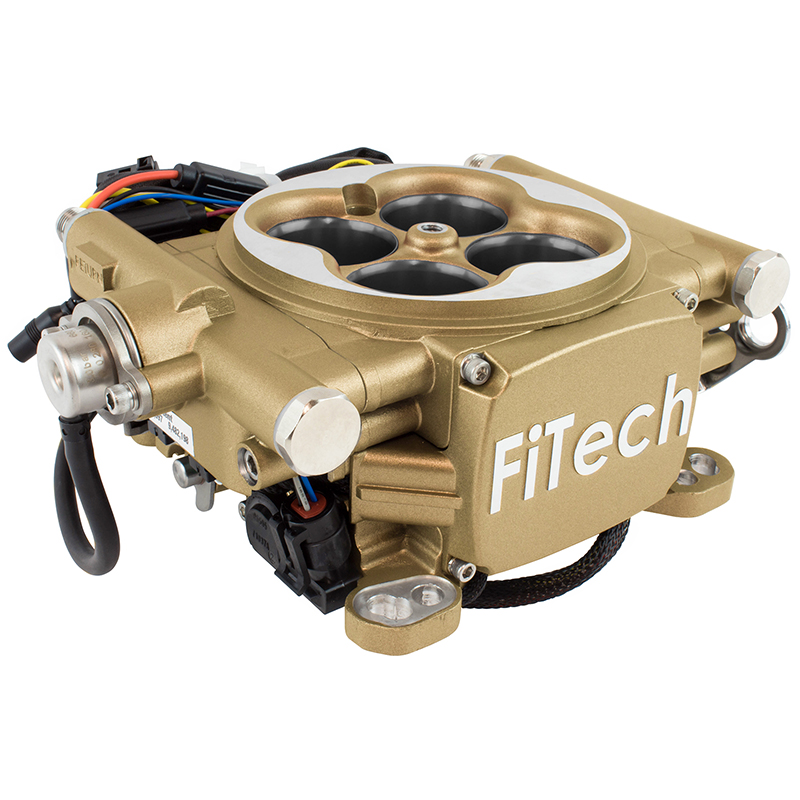

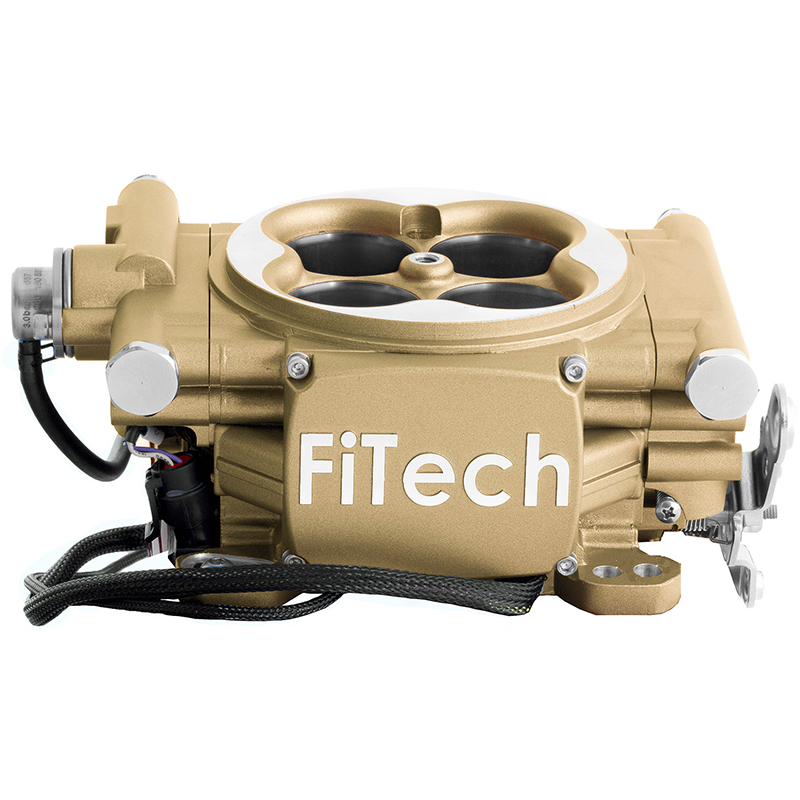

FiTech Fuel Injection Easy Street 400HP EFI Self-Tuning System
The Easy Street EFI 4 Self Tuning Fuel Injection is rated at 600 HP but is suitable for engines from 250 HP thru 600 HP. This system is perfect for your everyday Driver right up to your weekend Street Machine. It features the FASTEST most accurate Self Learning available, Timing control, Wet flow Annular discharge and tons of additional features.
It fits any 4 bbl intake manifold and is the most self-contained and full-featured unit of this type. The ECU (computer) is mounted on the throttle body, which greatly simplifies installation. No hole in your firewall and no unsightly harness draped across your engine.
The Easy Street EFI is a ready-to-run system that strays away from the programmable features and sticks to the basic functions necessary to get the best performance and economy out of your street and mild performance engine. FiTech once again allows you to ditch that old carburetor and advance into the EFI world at the most affordable price on the plant!
- Self-learning; Extreme self-learning for wide range super-fast dial in correction
- Suitable for crate engines and mild performance engines
- Attractive classic gold finish
- EZ-tach input, reads tach signal from: Coil, HEI, MSD/CDI and many other
brand ignitions (does not control timing)
- For non-boosted engines, Normally aspirated applications only
- Optional Hand Held tuning module for performance tuning
- Wide Band 4.2
- Annular discharge design
- Pre-programmed with Bolt-N-Go technology for out of the box performance- No tuning
required
- FiTech flow matched 70-lb injectors
- On board fuel pump driver
Part Type: Fuel Injection System
Application: Universal 4bbl, For non-boosted engines, Normally aspirated applications only
Horsepower Rating: 250 to 600 HP
Self-Tuning: Yes
Injection Style: Throttle Body
Metering Style: Speed Density
Throttle Body Included: Yes, Die Cast
Throttle Body Mounting Flange: 4bbl Square Bore
Throttle Body Material: Cast Aluminum
Throttle Body Finish: Natural
Injectors Included: Yes
Injector Size: 70 lbs./hr.
Venturi Quantity: 4, Annular Discharge Design
Intake Manifold Included: No
Fuel Rails Included: Internal
Fuel Inlet Ports: 3
Fuel Inlet Fitting: -6AN
Calibration Module Included: Yes, Handheld w/ Black & White Screen & Windshield Mount
ECU Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes, Wide Band 4.2
O2 Sensor Bung Kit Included: Yes, Clamp-On or Weld-On
Fuel Pump Included: No
Fuel Pressure Regulator Included: Internal
MAP Sensor Included: Yes, 2.5 Bar Internal
Intake Air Temperature Sensor Included: Yes
Throttle Position Sensor Included: Yes
Idle Air Control Included: Yes
Coolant Temperature Sensor: Yes
Distributor Included: No
Timing Control: No
Voltage Control for Fuel Pump: Yes
Fan Control Included: Yes, 1
Data Logging: No
Gasket Kit Included: Yes
Manufacturer: FiTech Fuel Injection
Manufacturer's Part Number: 30005
Weight: 11 lbs.
Warranty: LIMITED WARRANTY- a.) What is Covered- This warranty is limited to repair or replacement (at their option) of any FiTech part that fails because of a defect in workmanship or materials. Implied warranty: Any warranties implied by law are limited to the duration of this warranty, (except in those states where prohibited by law). b.) How Long it is Covered- All FiTech products are warranted for a period of one year from date of original retail purchase with an original receipt showing proof of purchase. c.) Who They Cover- All FiTech warranties apply to the original purchasing consumer. d.) What They Do Not Cover- Failure of a product due to misapplication, improper installation or maintenance, misuse, abuse, unauthorized repairs, accidents, or modifications to the original design. Certain components of the EFI systems are limited to a 90 day warranty period. See separate complete Limited Warranty document for a list of specific components. e.) What We Do Not Cover (Continued)- Removal or replacement costs. Shipping Costs. Damage to related components. Costs incurred due to downtime of vehicle.
Quantity: Sold as Kit
|
