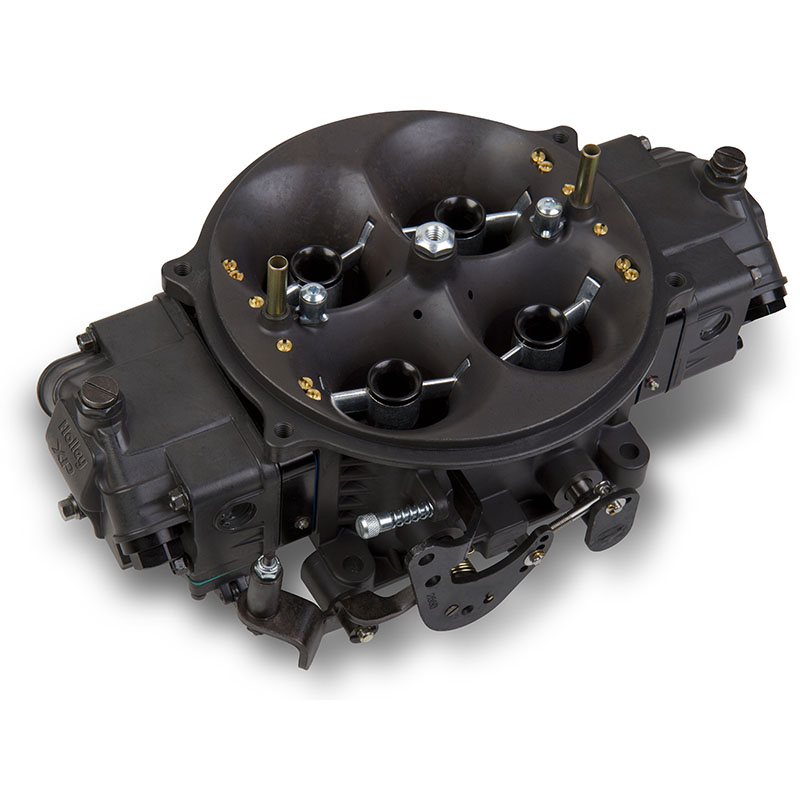

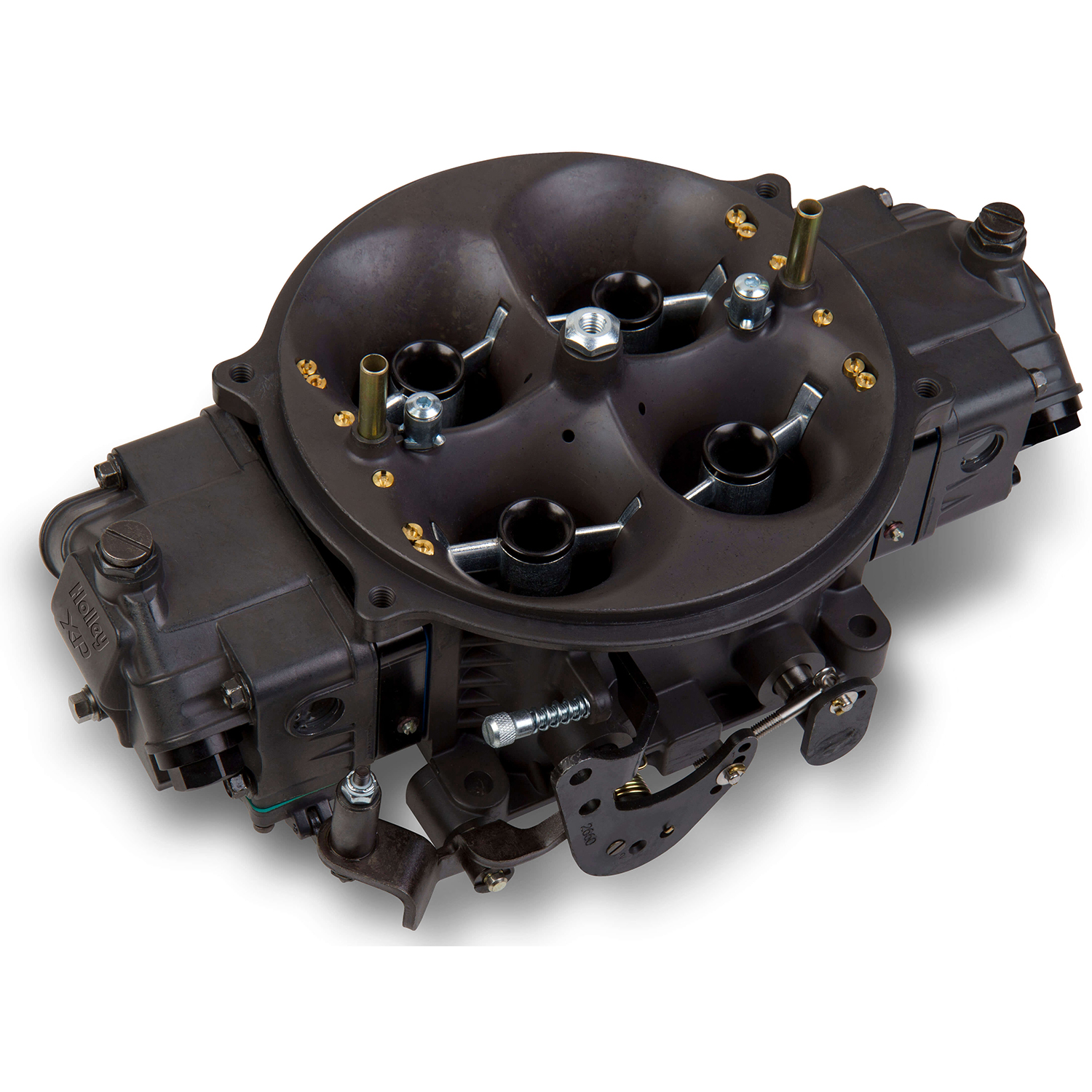

Holley 1050 CFM Generation 3 Ultra Dominator Carburetor
The Gen 3 Ultra Dominator features a brand new main–body, brand new state–of–the–art calibrations, high volume fuel bowls and sizes up to 1475 CFM! The patent pending GEN 3 main–body is 5/16” taller than the previous generation! This new height allowed for larger radius air entries which were optimized using Computational Fluid Dynamics (CFD) software to deliver smoother flow into new fully machined, big bore venturi. The Gen 3 utilizes high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, 12 hole billet booster inserts, fully tunable billet metering blocks, adjustable external linkage, throttle position sensor mounting points and knurled (hand adjustable) curb idle screws.
· All aluminum construction saves 3.8lbs. over original models (28% weight savings)
· Shiny with black anodized billet aluminum metering block and booster inserts
· Designed for use on Drag race, Pro Street, or any high horsepower engines
· Calibrations optimized for today’s larger race engines and new fuels
· Fully machined from venturi throat to throttle bore for predictable & repeatable performance
· Integrated idle bypass valve allows for adjustment of idle while maintaining correct throttle plate to transfer slot relationship
· Fully adjustable stainless steel external linkage can be adjusted for 1:1 progressive, or soft progressive throttle activation. No linkage parts under the carburetor
· 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
· 12 hole billet booster inserts for superior atomization and crisp throttle response
· Metering blocks feature improved durability, true gasket sealing and fully adjustable (emulsion bleeds, power valve channel restrictors & idle feed restrictors)
· Dual 50cc accelerator pumps provide the perfect amount of fuel from idle to full throttle
· Fuel bowls provide 20% more fuel capacity while controlling slosh with internal baffling
· Clear sight windows on both sides of bowls for easy and safe fuel level adjustments
· Built in drain plug in front center of bowl provides easy access to empty contents of bowl
· -8 (o-ringed) inlet threads offer a large variety of plumbing options and can be plumbed from either side
· Factory ready TPS mounting points for use with data acquisition systems (Holley TPS P/N 534-214 available)
· Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools
· Contoured hex head squinter screws for streamlined airflow
Part Type: Carburetor
Model: 4500UHP
Fuel Type: Gasoline
Application: Drag/Street
Number of Barrels: 4
CFM: 1050
Choke Type: None
Fuel Inlet: Dual
Fuel Inlet Fitting Size: -8 AN ORB
Secondary Type: Mechanical
Throttle Linkage Type: Universal
Ford Auto Trans Kickdown: No
Main Body: Aluminum
Booster Type: Annular Billet Insert
Screw-In Air Bleeds: Yes
Metering: 2 Circuit
Primary Venturi Diameter: 1.690”
Primary Throttle Bore Diameter: 2.000"
Primary Metering Block: Billet Aluminum
Secondary Metering Block: Yes
Primary Fuel Bowl: Center Hung Float, Aluminum
Secondary Fuel Bowl: Center Hung Float, Aluminum
Externally Adjustable Floats: Yes
Fuel Bowl Sight Windows: Yes
Primary Accelerator Pump: 50cc
Secondary Accelerator Pump: 50cc
Jet Extensions: No
Quick Change Jet Ports: No
Power Valve Channel Restrictions (PVCR): No
Secondary Spring Color: N/A
Finish: Hard Core Gray Anodized Billet Aluminum
Manufacturer: Holley
Manufacturer's Part Number: 0-80902HB
Weight: 8.8 lbs.
Warranty: Holley Performance Products warrants its new performance products to be free from defects in material and workmanship for a period of 90 days from date of purchase. Holleys Limited Warranty specifically does not apply to products which have been (a) modified or altered in any way; (b) subjected to adverse conditions such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current Holley catalog. This Limited Warranty is extended to the original consumer only. This Limited Warranty is not assignable or otherwise transferable. There are no warranties which extend beyond those stated herein. Holley offers no other warranties, express or implied beyond this Limited Warranty. In the event of an alleged defect in material or workmanship, Holley's responsibility is strictly limited to repair or replace the defective product. Holley has no other obligation express or implied. Final warranty determination will be in the sole discretion of Holley. Holley shall not be responsible for (a) actual or alleged labor, transportation or other incidental charges; or (b) actual or alleged consequential or other damages incurred by use of product of Holley Performance Products.
Quantity: Sold as Each
Note: Does not work with A.O.D. transmissions.
Note: This carburetor is not designed for use with any Chrysler automatic overdrive transmission. Severe transmission damage may result from improper application use.
