Howards Cams Beehive (Inverted Conical) Valve Springs

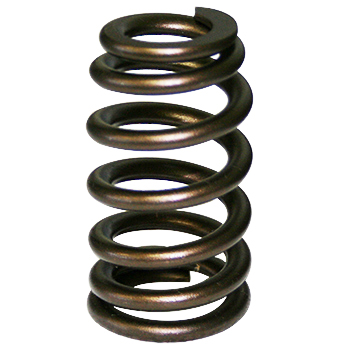

The unique design of the inverted conical valve springs offers increased harmonic resistance for greater spring stability. This design requires less spring pressure for better valve control. Tests have shown more horsepower, higher rpm’s and longer life expectancy. This design is well known on GM Gen III (LS1/2/6) applications but is also great for other applications including Chevrolet small blocks, Chrysler 5.7L Hemi, and many other performance applications. Sets of 16.
Part Type: Valve Springs
Style: Beehive (Inverted Conical) Valve Springs
Type: Ovate Beehive
Damper Included: No
Outer Spring Out Side Diameter (O.D.): 1.290"
Outer Spring In Side Diameter (I.D.): 1.055"
Inner Spring Out Side Diameter (O.D.): 1.014"
Inner Spring In Side Diameter (I.D.): .859"
Seat Pressure: 130 @ 1.800"
Open Pressure: 318 @ 1.200"
Valve Spring Rate: 313
Maximum Suggested Lift: .600"
Coil Bind: 1.140"
Electro Polished: No
Nitrided: No
Suggested Steel Retainers: 97161
Suggested Titanium Retainers: NA
Suggested Seat Cups: NA
Suggested Locators: 96021
Manufacturer: Howards Cams
Manufacturer's Part Number: 98110
Packaged Weight: 3.0 lbs.
Warranty: Race Application, No warranty expressed or implied

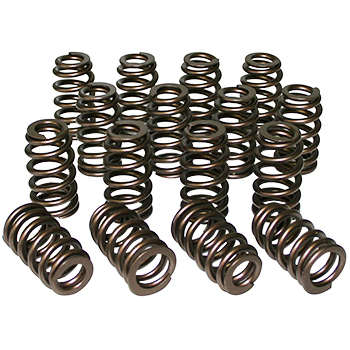

Quantity: Sold in Sets of 16
|
