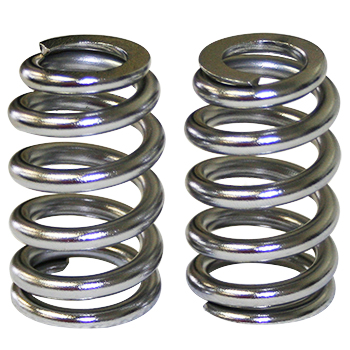

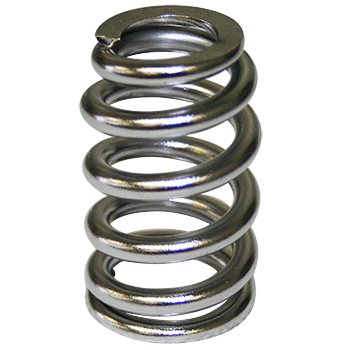

Howards Cams Electro Polished Valve Springs
The unique design of the inverted conical valve spring offers increased harmonic resistance for greater spring stability. This design requires less spring pressure for better valve control. Manufactured of aircraft-grade chrome silicone with advanced heat-treating. Springs then receive an advanced electro polished finish and stress relieved. This enhanced finish increases valve spring life and fatigue resistance for lap after lap consistency. Designed for racing hydraulic and mechanical flat tappet as well as performance hydraulic roller camshafts. Sets of 16.
Part Type: Electro Polished Valve Springs
Style: Beehive Valve Springs
Type: Inverted Conical Beehive
Damper Included: No
Outer Spring Out Side Diameter (O.D.): 1.280"
Outer Spring In Side Diameter (I.D.): 1.035"
Inner Spring Out Side Diameter (O.D.): .990"
Inner Spring In Side Diameter (I.D.): .650"
Seat Pressure: 115 @ 1.800"
Open Pressure: 354 @ 1.225"
Valve Spring Rate: 412
Maximum Suggested Lift: .600"
Coil Bind: 1.150"
Electro Polished: Yes
Nitrided: No
Suggested Steel Retainers: 97161, 97174
Suggested Titanium Retainers: NA
Suggested Seat Cups: NA
Suggested Locators: 96021
Manufacturer: Howards Cams
Manufacturer's Part Number: 98114
Packaged Weight: 3.0 lbs.
Warranty: Race Application, No warranty expressed or implied

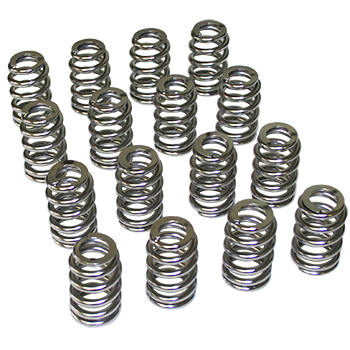

Quantity: Sold in Sets of 16
|
