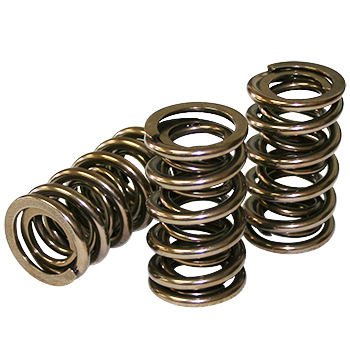

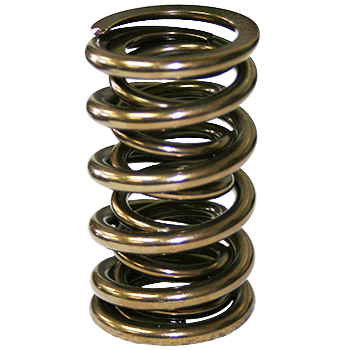

Howards Cams LS1/2/6 Dual Valve Springs
Specifically designed for GM Gen III LS1, LS2, and LS6 performance applications. Hi-tech winding, heat treat and finishing processes make these the ultimate late model performance spring.
Part Type: LS1/2/6 Dual Valve Springs
Style: GM Gen III (LS1/2/6)
Type: Dual
Damper Included: No
Outer Spring Out Side Diameter (O.D.): 1.305"
Outer Spring In Side Diameter (I.D.): .955"
Inner Spring Out Side Diameter (O.D.): .950"
Inner Spring In Side Diameter (I.D.): .676"
Seat Pressure: 145 @ 1.800"
Open Pressure: 385 @ 1.150"
Valve Spring Rate: 412
Maximum Suggested Lift: .640"
Coil Bind: 1.100"
Electro Polished: No
Nitrided: No
Suggested Steel Retainers: 97162
Suggested Titanium Retainers: 97212
Suggested Seat Cups: NA
Suggested Locators: 96023
Manufacturer: Howards Cams
Manufacturer's Part Number: 98116
Packaged Weight: 3.0 lbs.
Warranty: Race Application, No warranty expressed or implied

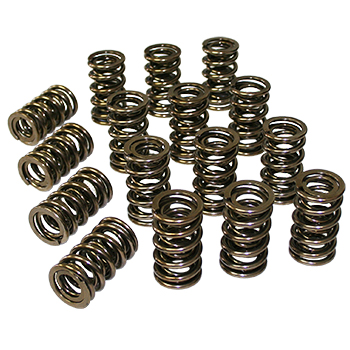

Quantity: Sold in Sets of 16
|
