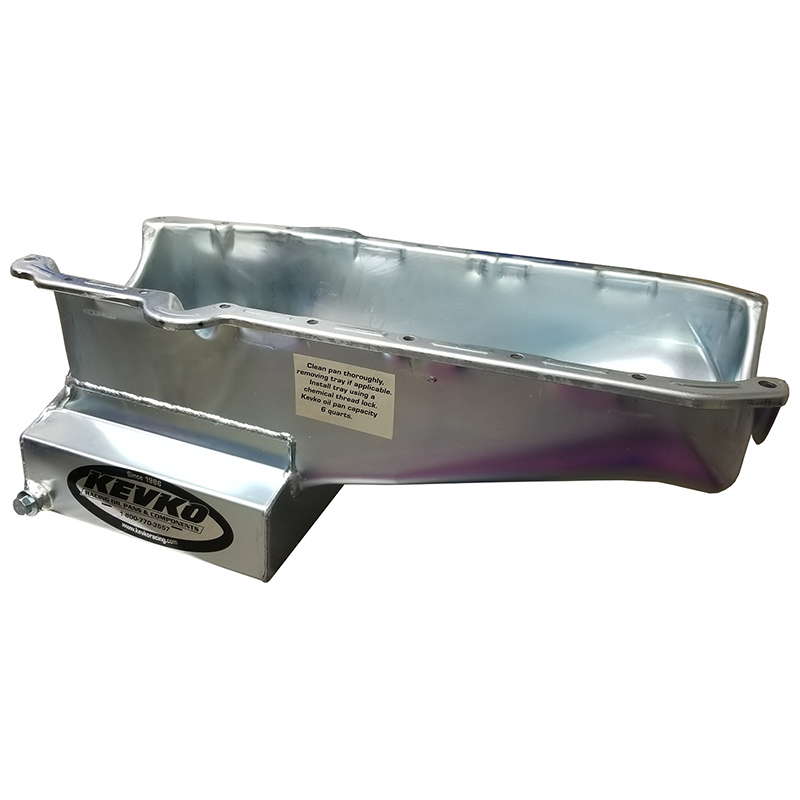

Kevko Drag Race/Street Oil Pan
These 8" deep pans feature a removeable windage tray and 2 crankshaft scrapers to remove power robbing windage. Dual trap doors keep oil in the pickup area. 6 quart capacity. Plated finish.
Part Type: Oil Pan
Application: Chevrolet Small Block 1986-Up
Oil Pan Style: Drag Race/Street
Oil Pan Capacity: 6 Quarts
Oil System Capacity:7 Quarts
Oil Pan Depth: 8.000"
Oil Pan Sump Depth: 8.000"
Oil Pan Sump Length: 9.000"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: Yes, 1.25" Each Side
Rear Main Seal Style: 1-Piece
Stroker Clearanced: Yes
Maximum Stroke with OE Rod: 4.125"
Dipstick Provision: Yes
Dipstick Location: Passenger Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
Sump Tray Included: No
Inspection Fitting: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No

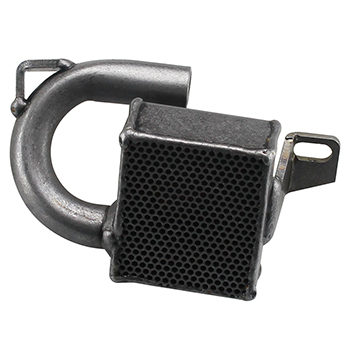

Recommended Pickup for M55 Style Pump: KEV1004-1
Recommended Pickup for M55HV Style Pump: KEV1004
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Zinc Plated
Manufacturer: Kevko Oil Pans & Components
Manufacturer's Part Number: 1070NRH
Weight: 12.00 lbs.
Warranty: Race Application, No Warranty express or implied
Quantity: Sold as Each
Note: Fits all Chevy Chassis except 62-67 Nova/Chevy II.
|
