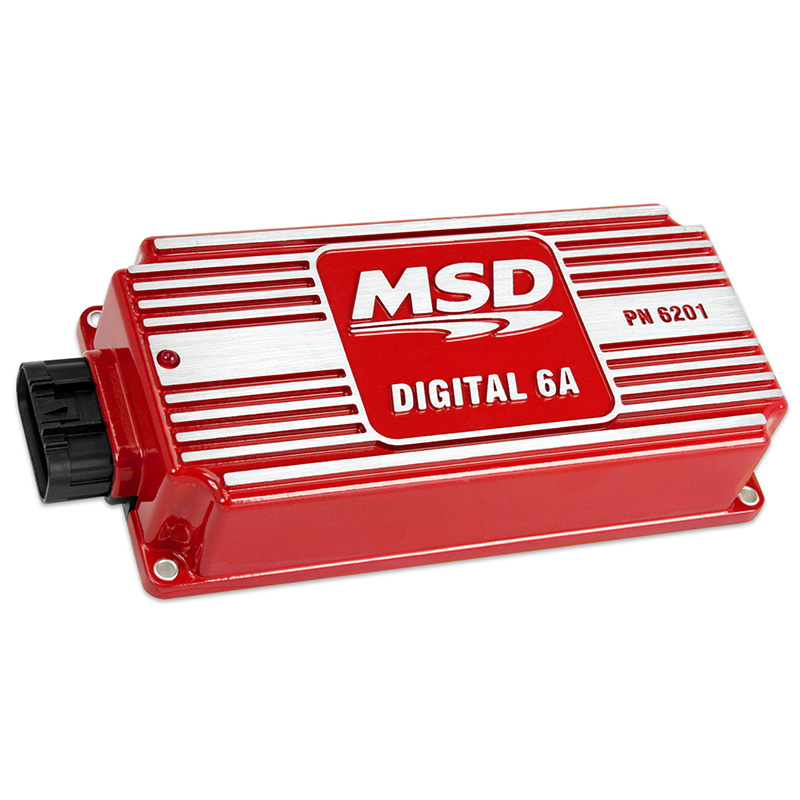

MSD Digital 6A Ignition Control
These multiple spark capacitive discharge ignition controls provide a very high primiary voltage to the coil and multiple sparks per cylinder for up to 20 degrees of crankshaft duration. Primary voltage output is 520-540 volts and energy output is 135-145 millijoules per spark. The benefits are quicker starts, increased power, smoother idle, and reduced spark plug fouling.
Part Type: Ignition Control
Application: Universal 4, 6, & 8 Cylinder, equipped with 12 volt
Ignition Box Output: Capacitive Discharge
Circuitry: Digital
PC Programmable: No
Data Acquisition: No
USB Interface: No
Timing Advance Capability: No
Rev Limiter: No
Timing Retard: No
RPM Activated Switch: No
Start Retard: No
General Purpose Input/Output Terminals: No
Multiple Spark Duration: 20°
Spark Energy: 135-145 Millijoules
Voltage Primary Output (Into Coil): 520-540 Volts
Voltage Secondary Output (Coil Output): 45,000 Volts
Operating Voltage: 12-15 Volts, 7 Volt Start
Operating Current Amp per RPM: .7 amp/1,000 RPM
RPM Range: 0-15,000 with 14.4 Volts
Coil Included: No
Suggested Coils: MSD8202, MSD8207, MSD8252, MSD8253
Ignition Box Color: Red
Ignition Box Length: 8 in.
Ignition Box Width: 4 in.
Ignition Box Height: 1.825 in.
Manufacturer: MSD Performance
Manufacturer's Part Number: 6201
UPC: 085132062010
Weight: 1.7 lbs.
Warranty: LIMITED WARRANTY- MSD warrants this product to be free from defects in material and workmanship under its intended normal use, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods. In no event shall MSD or its suppliers be liable for special or consequential damages.
Quantity: Sold as Each
|
