MSD Atomic EFI Fuel Injection System, Master Kit
Install Saturday morning, make the cruise Saturday night!

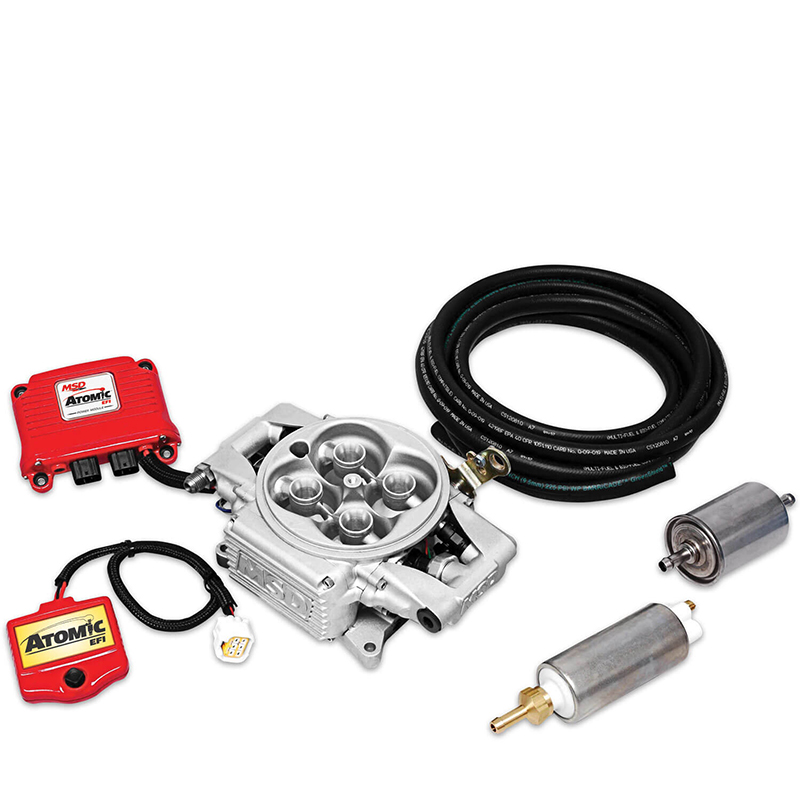

Master Kit You get the Throttle Body, Power Module (with Wide Band O2 sensor), Handheld Controller, Fuel Pump, Post Filter, 15 feet of 3/8" I.D. fuel line, mounting brackets and EFI specific fuel line clamps. For up to 525 HP naturally aspirated (at the crank).
- Only 8 required connections.
- Self-Tuning, no laptop required.
- Controls ignition timing.
- Boost or Nitrous (wet systems only) ready.
- Blow through or draw through
- 2 BAR MAP, up to 14psi
- Timing Control (Retard per pound of boost)
- Alternate Air Fuel setting under boost
- Includes a Nitrous Retard (It will retard timing when nitrous is active).
- Alternate Air Fuel setting when nitrous is active.
- ECU is integral to the throttle body.
- 1000 cfm throttle body.
- TPS, MAP, IAT & fuel pressure sensors are incorporated into the ECU.
- Only coolant temp & O2 sensors need to be connected.
- Internal fuel rails
- Four precision 80 psi injectors.
- Standard 4bbl. mounting. Fits all 4150/4160 style intake manifolds
- 625 HP max output (525 HP with standard fuel kit).
- All research, design, programming, assembly, and final testing are done by MSD's skilled
technicians in El Paso, Texas
Part Type: Fuel Injection System
Application: Universal 4bbl
Horsepower Rating: 525 HP
Self-Tuning: Yes
Injection Style: 1000 CFM Throttle Body
Metering Style: Speed Density
Throttle Body Included: Yes
Throttle Body Mounting Flange: 4bbl Square Bore
Throttle Body Material: Cast Aluminum
Throttle Body Finish: Natural
Injectors Included: Yes, 4
Injector Size: 80 lbs/hr.
Venturi Quantity: 4, Annular Discharge Design
Intake Manifold Included: No
Fuel Rails Included: Internal
Fuel Inlet Ports: 3
Fuel Inlet Fitting: -6 AN
Calibration Module Included: Yes, Handheld Controller
ECU Included: Yes
Wiring Harness Included: Yes
Oxygen Sensor Included: Yes, Wide Band
O2 Sensor Bung Kit Included: Yes, Weld-in
Fuel Pump Included: Yes
Fuel Pressure Regulator Included: Yes
Boost/Vacuum Reference Port: No
Fuel Line Included: Yes, 15 ft. 3/8" I.D.
Pre-Fuel Filter Included: Yes
Post-Fuel Filter Included: Yes
Fuel Pump Mounting Bracket: Yes
Fittings Included: Yes
Fuel Line Clamps: Yes, EFI specific
MAP Sensor Included: Yes, Internal
Intake Air Temperature Sensor Included: Yes
Throttle Position Sensor Included: Yes
Idle Air Control Included: Yes
Coolant Temperature Sensor: Yes
Distributor Included: No
Timing Control: Yes
Voltage Control for Fuel Pump: Yes
Fan Control Included: No
Data Logging: No
Gasket Kit Included: Yes
Manufacturer: MSD
Manufacturer's Part Number: 2900
Weight: 15.5 lbs.
Warranty: LIMITED WARRANTY- MSD warrants this product to be free from defects in material and workmanship under its intended normal use, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods. In no event shall MSD or its suppliers be liable for special or consequential damages.
Quantity: Sold as Kit
|
