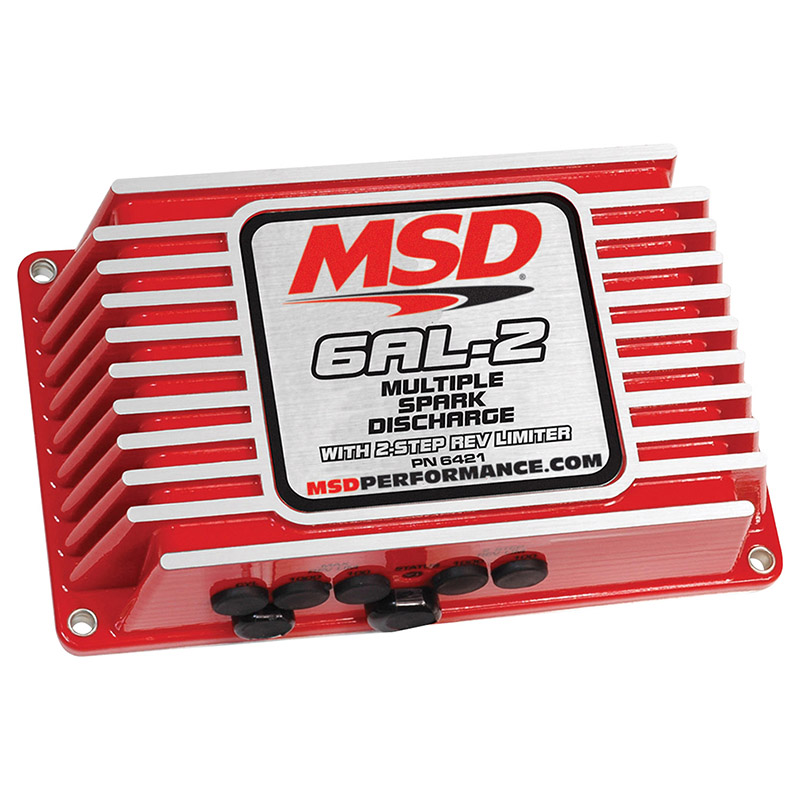

MSD Ignition 6AL-2 Ignition Control
Inside the cast aluminum housing you'll find an advanced micro-controller that manages the timing and RPM of the ignition. The multiple sparks of the 6AL-2 burn in the cylinder for 20 degrees of crankshaft rotation to ensure complete combustion. There are two rev limiters; one for high end overrev protection and another you can activate off a clutch or transbrake to set a launch limit. This feature will help your car blast off the starting line! Adjustments are made via four rotary dials for 100 RPM increment control! No modules needed. Compatible with points, amplifiers, magnetic pickups and hall effects.
• Spark Energy: 135 mj
• Primary Output Voltage: 535
• Secondary Voltage Output: 45,000
• Current Draw Per 1,000 RPM: .7 Amps
• Built-in 2-step Rev control - with rotary dials
• State-Of-The-Art Digital Controller
Part Type: Ignition Control
Application: Universal 4, 6, & 8 Cylinder, equipped with 12 volt
Ignition Box Output: Capacitive Discharge
Circuitry: Digital
PC Programmable: No
Data Acquisition: No
USB Interface: No
Timing Advance Capability: No
Rev Limiter: Yes, 2
Timing Retard: No
RPM Activated Switch: No
Start Retard: No
General Purpose Input/Output Terminals: No
Multiple Spark Duration: 20°
Spark Energy: 135 Millijoules
Voltage Primary Output (Into Coil): 535 Volts
Voltage Secondary Output (Coil Output): 45,000 Volts
Operating Voltage: 12-18 Volts, Negative Ground
Operating Current Amp per RPM: .7 amp/1,000 RPM
RPM Range: 12,000 RPM with 14.4 Volts
Coil Included: No
Suggested Coils: MSD8202, MSD8207, MSD8252, MSD8253
Ignition Box Color: Red
Ignition Box Length: 7 in.
Ignition Box Width: 4 in.
Ignition Box Height: 2 in.
Manufacturer: MSD Performance
Manufacturer's Part Number: 6421
UPC: 085132064212
Weight: 3.7 lbs.
Warranty: LIMITED WARRANTY- MSD warrants this product to be free from defects in material and workmanship under its intended normal use, when properly installed and purchased from an authorized MSD dealer, for a period of one year from the date of the original purchase. Intended normal use means that this item is being used as was originally intended and for the original application as sold by MSD. Any modifications to this item or if it is used on an application other than what MSD markets the product, the warranty will be void. If found to be defective as mentioned above, it will be repaired or replaced at the option of MSD. Any item that is covered under this warranty will be returned free of charge using Ground shipping methods. In no event shall MSD or its suppliers be liable for special or consequential damages.
Quantity: Sold as Each
|
