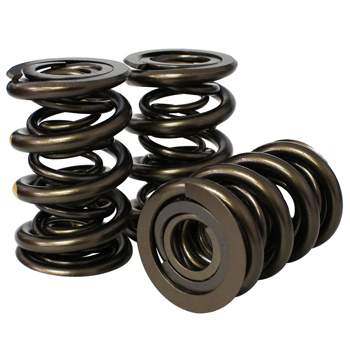

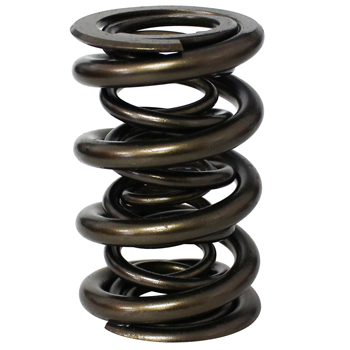

Manley NexTek® Roller Valve Springs
Specially processed premium-grade materials. State of the art winding and thermal treatment. Virtually free of impurities or surface irregularities. Better valve train stability and component life. Set of 16.
Part Type: Roller Valve Springs
Style: Nextek®
Type: Triple
Damper Included: No
Outer Spring Outside Diameter (O.D.): 1.677"
Outer Spring Inside Diameter (I.D.): .635"
Middle Spring Outside Diameter (O.D.): NA
Middle Spring Inside Diameter (I.D.): NA
Inner Spring Outside Diameter (O.D.): NA
Inner Spring Inside Diameter (I.D.): NA
Seat Pressure: 350 @ 2.100"
Open Pressure: 1010 @ 1.200"
Valve Spring Rate: 733
Maximum Suggested Lift: .900"
Coil Bind: 1.142"
Electro Polished: No
Nitrided: No
Suggested Steel Retainers: NA
Suggested Titanium Retainers: 3503
Suggested Seat Cups: NA
Suggested Locators: NA
Manufacturer: Manley
Manufacturer's Part Number: 221448-16
Packaged Weight: 5.9 lbs.
Warranty: Race Application, No warranty expressed or implied

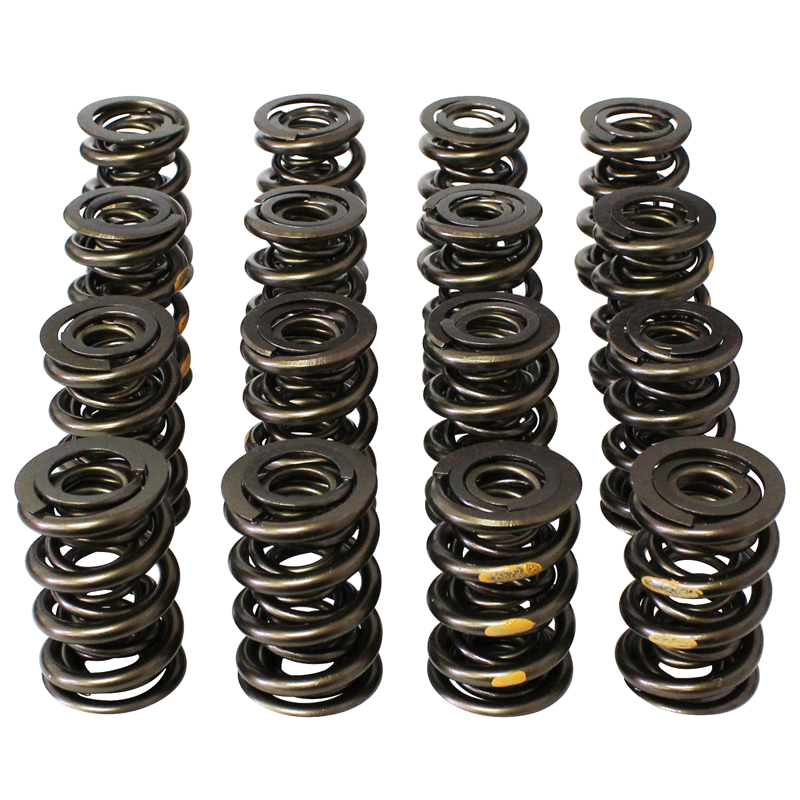

Quantity: Sold in Sets of 16
|
