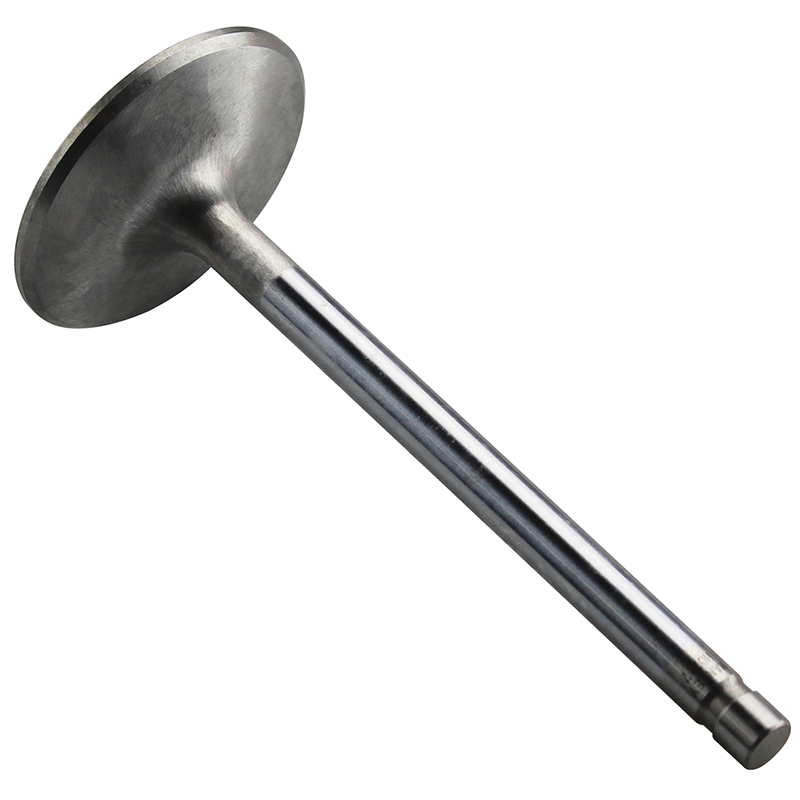

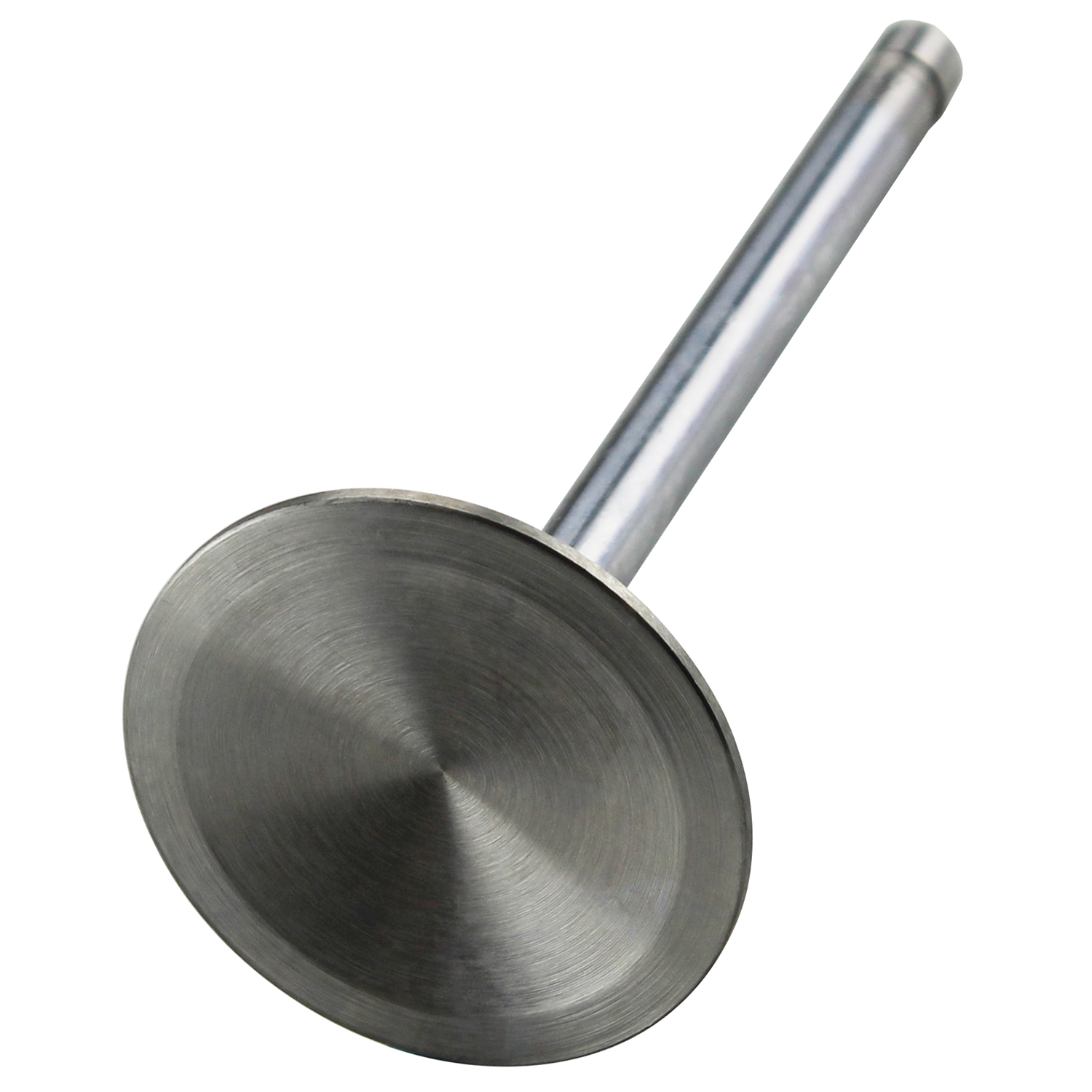

Manley Severe Duty Valve, Chevrolet SB, 11/32", 2.080" Intake, +.100" Length, Each |
|
 |
Manley Severe Duty Intake Valves
Manley's signature in the performance and industry. The NK-844stainless Intake material is offered by no competitor in the world. At 1000 degrees F the Manley NK-844 displys more than four times the ultimate tensile of the competitors best valve.
Severe Duty NK-844 Stainless Intake Material
Chrome Stems Hard Tips
Fully Machined Swirl Polished
Part Type: Intake Valves
Style: Manley Severe Duty Valves
Application: Chevrolet Small Block V8
Head Diameter: 2.080"
Stem Diameter: 11/32" (.3415")
Installed Height: +.100"
Overall Length: 5.026"
Material: NK-844 Stainless Intake Material
1-Piece Design: Yes
Hard Chrome Stems: Yes
Undercut Stem: No
Black Nitrided: No
Swirl Polished: Yes
Lock Groove Type: Conventional
Lock Groove Quantity: Single
Tip Length: .250"
Under Head Angle: 12 Degrees
Under Head Radius: .375"
Margin: .065"
Seat Width: .080"
Top of Head: 7 Degree Dish
Weight: 126 grams
Manufacturer: Manley Performance
Manufacturer's Part Number: 11844-1
Weight: 0.30 lbs.
Warranty: Race Application, No warranty expressed or implied.
Quantity: Sold as Each
|
|
|
