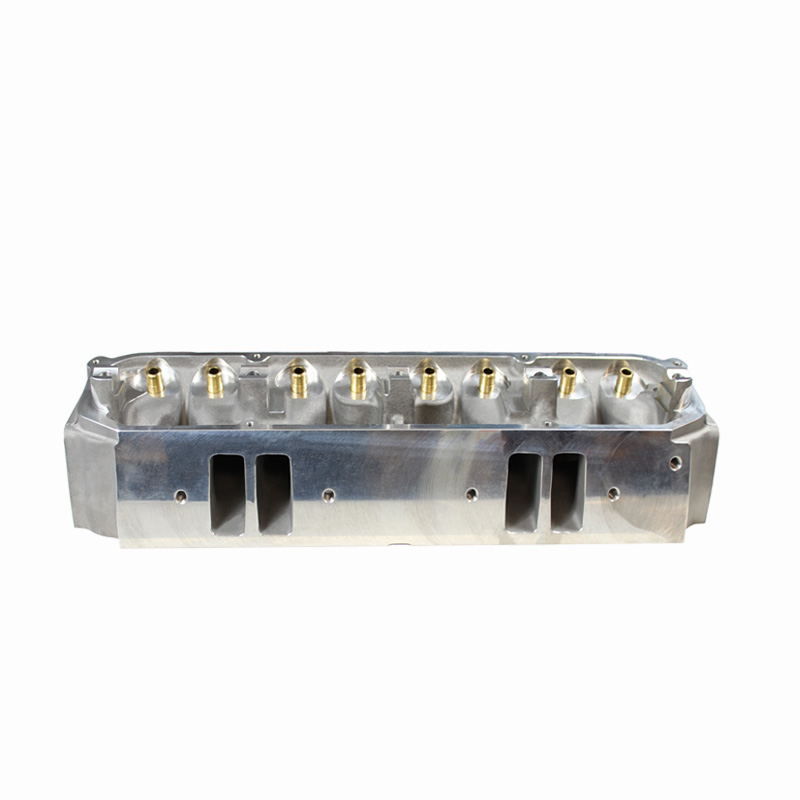

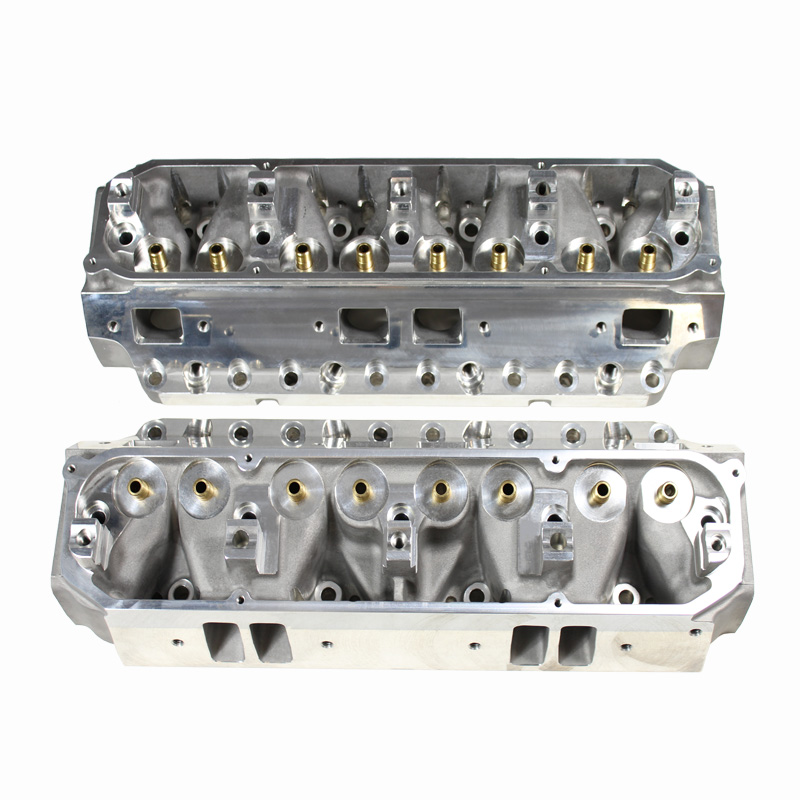

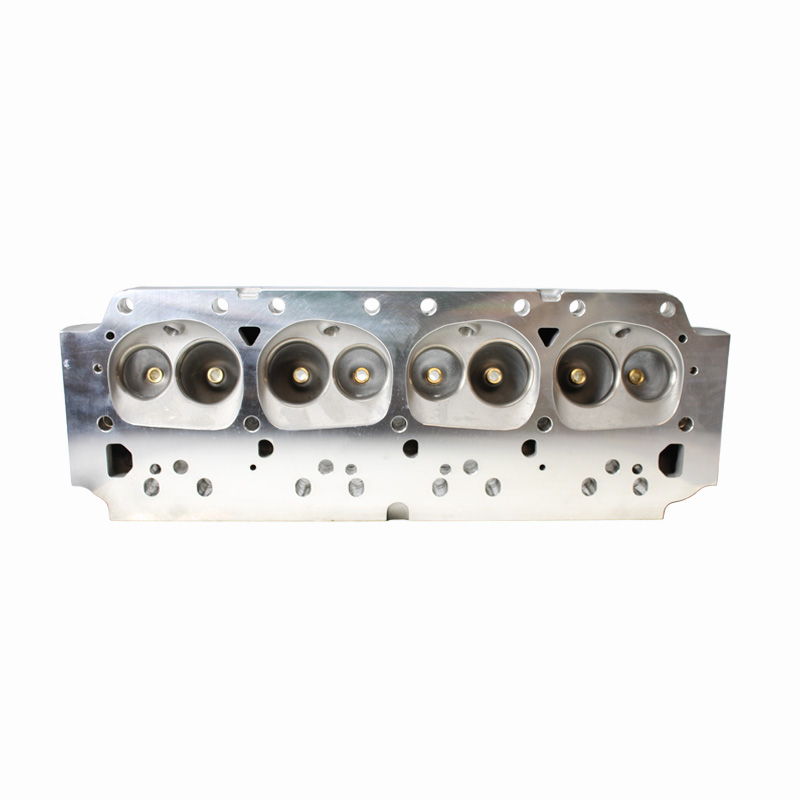

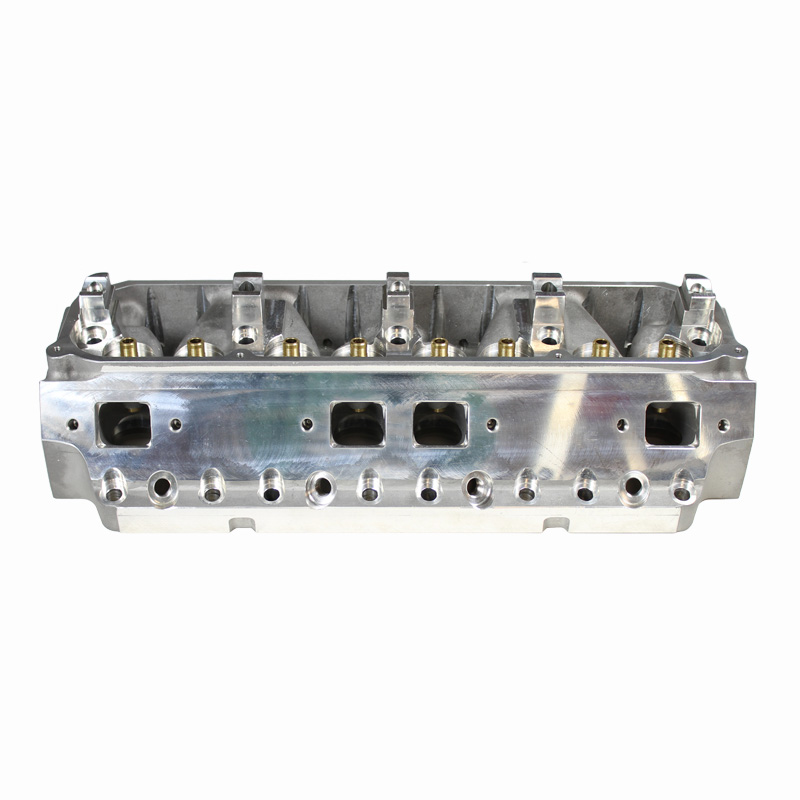

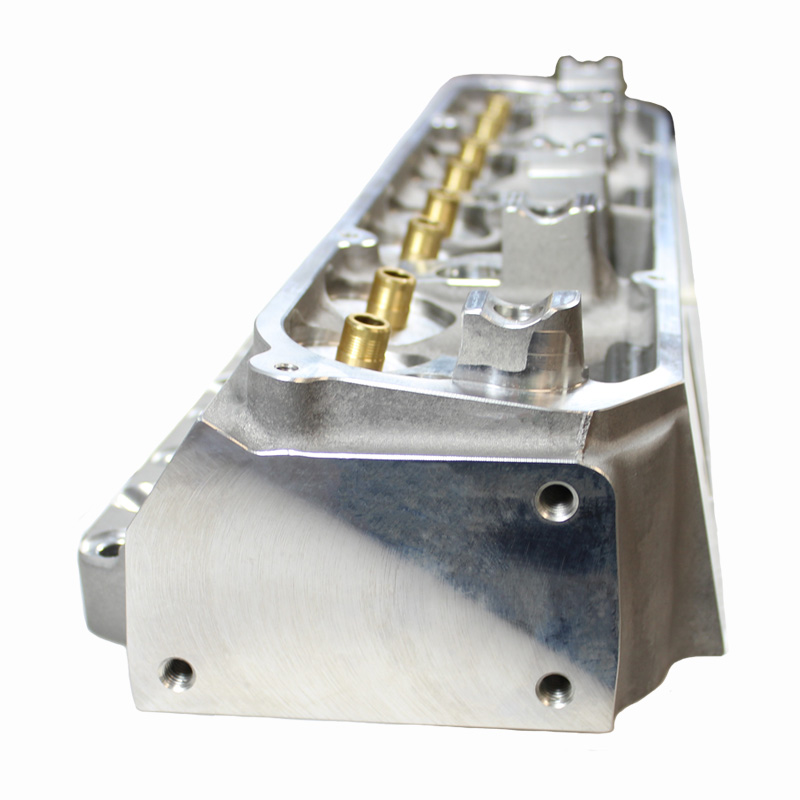

Power Products Power Plus Chrysler BB Aluminum Heads
Great for street, street/strip or mild competition. Designed to significantly increase horsepower and torque throughout a wide power band. Great throttle response and better top end power. Enhanced precision cast 210cc intake runners for increased flow. Made from 356T-6 aluminum for superior strength, looks, and flow. Other features include bronze guides, hardened valve seats, large spring seats and multi-angle valve job.
Part Type: Cylinder Head
Application: Chrysler Big Block
Cylinder Head Material: Aluminum
Bare or Assembled: Bare
Combustion Chamber Size: 70cc
CNC Machined Combustion Chambers: No
Intake Valve Angle: 15
Exhaust Valve Angle: 15
Intake Port Volume: 210cc
CNC Machined Intake Port: No
Intake Port Flow: 300cfm @ .700" Lift/ 28"
Intake Port Location: Standard
Intake Port Shape: Rectangular
Intake Port Dimensions: 2.260" x 1.095"
Suggested Intake Gaskets: FEL1215
Exhaust Port Volume:
CNC Machined Exhaust Port: No
Exhaust Port Flow: 225 cfm @ .700" Lift/ 28"
Exhaust Port Location: Raised .300"
Exhaust Port Shape: Square
Exhaust Port Dimensions: 1.660" x 1.220"
Suggested Exhaust Gaskets: FEL1414
Suggested Spark Plug: NGKR5671A-8
Spark Plug Style: Angled
Valve Guides: Yes
Valve Guide Spacing:
Valve Stem Diameter:
Valve Seats: Yes
Valve Job: 5-Angle
Intake Valve Diameter: 2.140"
Intake Valve Included: No
Exhaust Valve Diameter: 1.810"
Exhaust Valve Included: No
Suggested Valve Length: 4.915"
Valve Spring Pockets:
Valve Springs Included: No
Valve Spring Application:
Valve Springs Retainers Included: No
Valve Locks Included: No
Valve Seals Included: No
Rocker Studs Included: No
Guide Plates Included: No
Valve Cover Mounting Style: Perimeter bolt
Steam Holes Drilled: No
Heat Crossover: No
Suggested Head Bolts: ARP145-3606
Suggested Head Studs:
Suggested Stud Girdle: NA
Head Bolt Torque with Oil:
Rocker Stud Torque with Oil:
Intake Bolt Torque with Oil:
Manufacturer: Power Products
Manufacturer's Part Number: 54440
Weight: 72 lbs
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Pair
|
