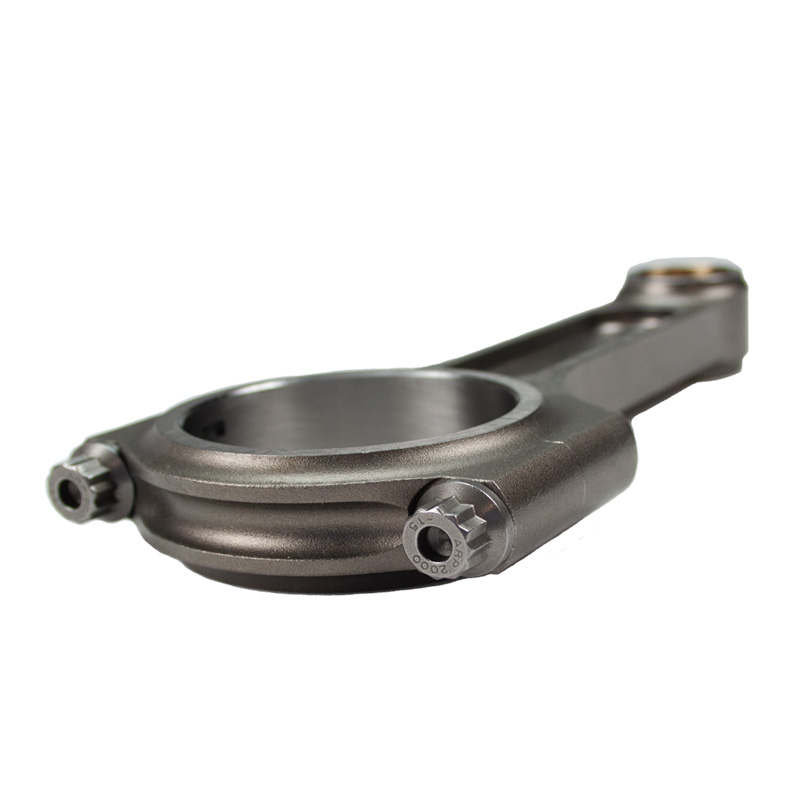

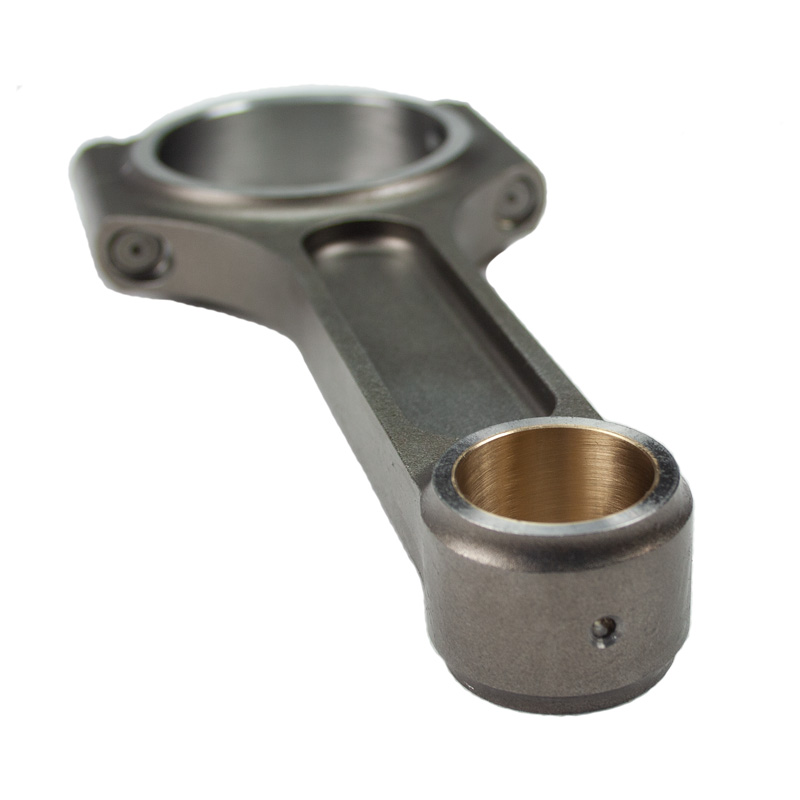

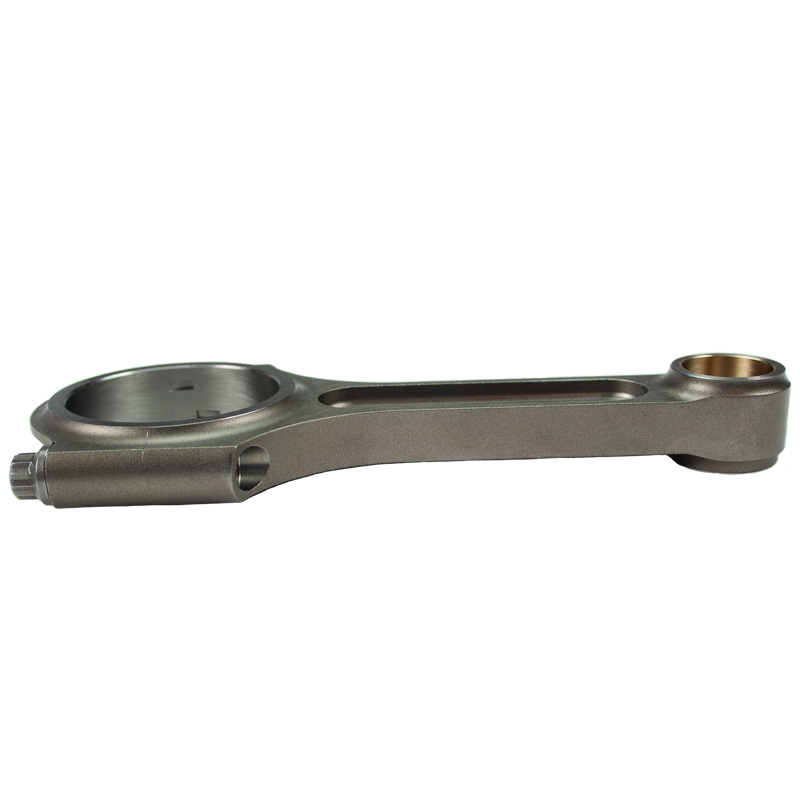

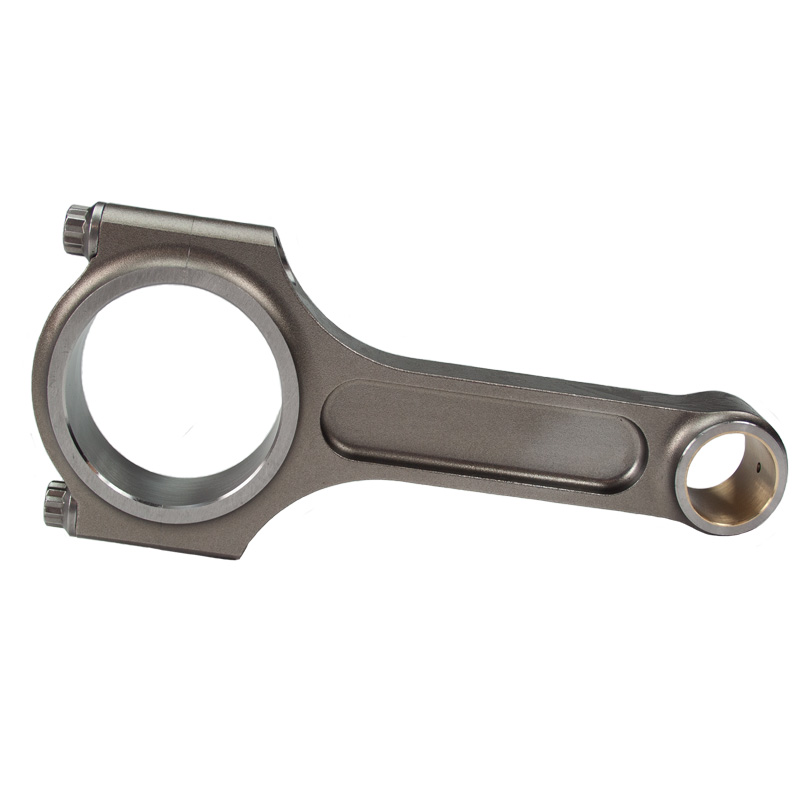

Power Products, Competition Series, 4340 Forged I-Beam Connecting Rods
Computer designed to insure a high strength to weight ratio. Stroker clearance designed it the big end while retaining strength. Certified chromoly 4340 blended steel is machined on high precision CNC centers. They are then x-rayed and ultrasonically tested. Stress relieved and shot peened prior to final sizing. Precision heat treatment and ARP 2000 cap screws finish of the Competition Series Connecting Rods. Sets of 8.
- Computer Designed for High Strength to Weight Ratio
- Precision CNC Machined 4340 Chromoly Steel
- Double Rib Cap Design for Greater Bearing Support
- 7/16" ARP 2000 (220,000 psi) Cap Screws
Part Type: Connecting Rods
Application: Chevrolet Big Block
Connecting Rod Beam Style: I-Beam
Material: 4340 Forged Steel
Connecting Rod Finish: Shot-Peened
Magnafluxed: Yes
Connecting Rod Length Center to Center: 6.135”
Connecting Rod Journal: 2.200”
Housing Bore: 2.325”
Pin Bore Diameter: .990”
Big End Width: .992”
Pin End Width: 1.125”
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight: 771g
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: Yes
Fastener Type: Cap Screw
Fasteners: 7/16” ARP 2000
Fastener Head Style: 12 Point
Fastener Yield Strength: 220,000 psi
Fastener Torque: 70 ft/lbs. with ARP moly lube on threads
Recommended Bearings: Clevite CB743, King CR808, ACL8B743, Enginetech BB619
Manufacturer: Power Products
Manufacturer's Part Number: PVT77-4613522
UPC:
Connecting Rod Set Weight: 14.15 lbs.
Warranty: Race Application. No Warranty express or implied

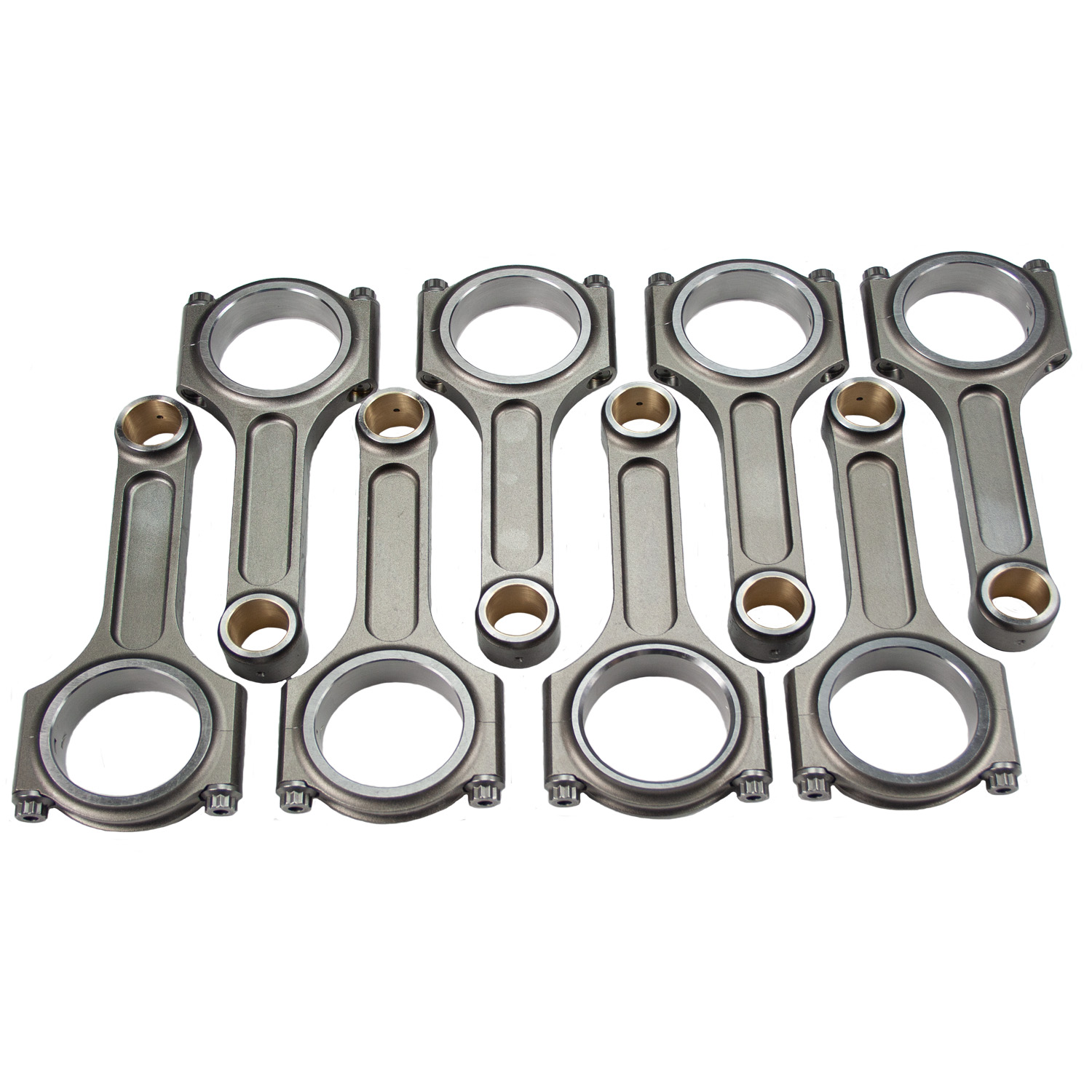

Quantity: Sold in Sets of 8
|
