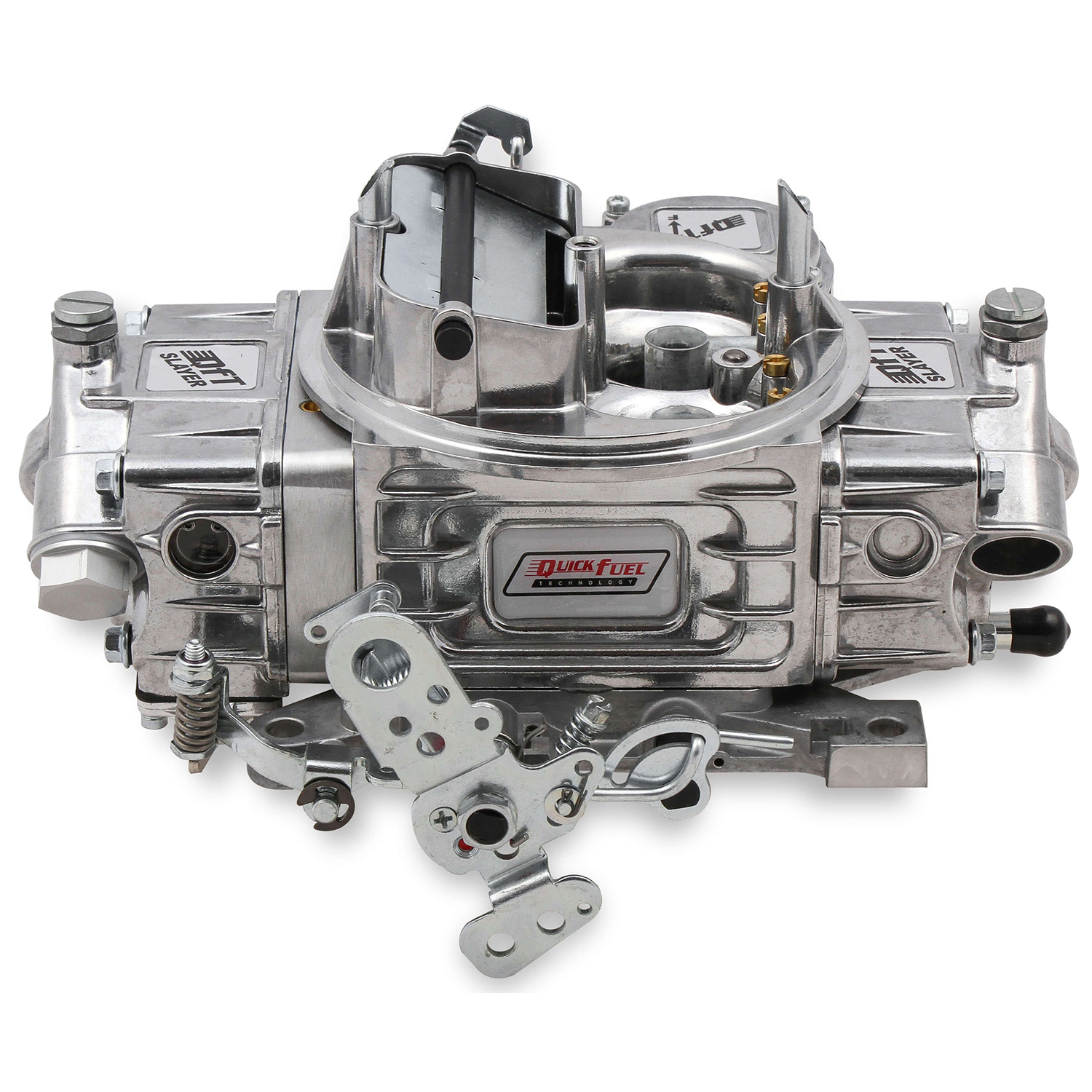

Quick Fuel Slayer Series Vacuum Secondary Carburetor
The Slayer Series brings QFT engineering innovations to cost conscious and performance oriented enthusiasts. The series is filled with QFT time and race tested features.
- All aluminum construction - main body, fuel bowls & throttle body
- Changeable idle air & high speed bleeds
- Built-in sight glasses for easy float adjustment
- 3-stage emulsion circuit in primary block
- Changeable primary feed restrictions & power valve channel restrictions
- Vacuum secondary with QuickSet adjustment
- Secondary plate with changeable jets
- Notched float in secondary bowl
- Electric choke - fully adjustable, 1-wire hookup
Part Type: Carburetor
Model: 4160
Fuel Type: Gasoline
Application: Street
Number of Barrels: 4
CFM: 750
Choke Type: Electric
Fuel Inlet: Dual
Fuel Inlet Fitting Size: 5/8"-18 Inverted Flare
Secondary Type: Vacuum
Throttle Linkage Type: Universal
Ford Auto Trans Kickdown: No
Main Body: Aluminum
Booster Type: Downleg
Screw-In Air Bleeds: Yes
Primary Venturi Diameter: 1.375"
Base Plate: Integral with Main Body
Base Plate Pattern: 5.16" x 5.62"
Primary Throttle Bore Diameter: 1-11/16"
Secondary Throttle Bore Diameter: 1-11/16"
Primary Metering Block: Billet Aluminum
Secondary Metering Block: No
Primary Fuel Bowl: Center Hung Float, Aluminum
Secondary Fuel Bowl: Center Hung Float, Aluminum
Externally Adjustable Floats: Yes
Fuel Bowl Sight Windows: Dual
Primary Accelerator Pump: 30cc
Secondary Accelerator Pump: NA
Primary Main Jets: 72
Secondary Main Jets: 82
Jet Extensions: No
Quick Change Jet Ports: Yes
Needle & Seat: .110" Viton
Idle Bleed: .070"/.039"
Intermediate Bleed: NA
Hi-Speed Bleed: .031"
Primary Power Valve: 6.5" Hg
Secondary Power Valve: NA
Primary Pump Nozzle Size: .033"
Secondary Pump Nozzle Size: NA
Secondary Spring Color: NA
Finish: Shiny Tumble Polished
PCV Port: Yes
Vacuum Port - Timed (Spark): Two
Vacuum Port - Full Vacuum: One
Manufacturer: Quick Fuel Technologies
Manufacturer's Part Number: SL-750-VS
Weight: 9.05 lbs.
Warranty: Quick Fuel Technology warrants to the original purchaser only that its new and remanufactured products shall be free from defects in material and workmanship for a period of 90 days from date of purchase. In the event of a defect in material or workmanship, QFT will, at its option, repair or replace the product, or any defective part or parts thereof, without charge to the original purchaser. This warranty does not apply to products that have been modified or altered, subjected to misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, faulty repair or used in other than those applications recommended by QFT.
Quantity: Sold as Each
|
