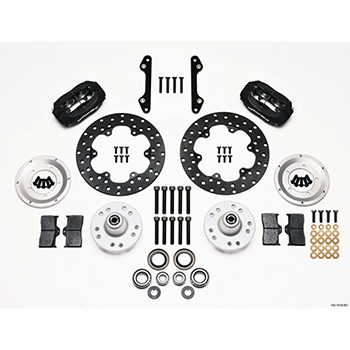

Wilwood Forged Dynalite Drag Brake Kit
True bolt-on kits available for all popular muscle car applications. Purpose built for sportsman category door cars and others with full functional four-wheel disc brakes weighing up to 2,800 pounds. Standard kits included solid face rotors with optional drilled rotor kits available to further reduce driveline weight in classes where every weight advantage is necessary.
Note: Designed for 15" minimum diameter wheels.
Part Type: Drag Brake Kit
Application: Camaro 70-78, Chevelle 73-77, Chevy II/Nova 75-78, Monte Carlo 73-77
Position: Front
Offset: O.E. +.13
Caliper Type: Forged Dynalite
Front Calipers Included: Yes
Rear Calipers Included: No
Caliper Finish: Black Anodized
Caliper Mounts Included: Yes
Number of Pistons: Four
Piston Type: Stainless
Piston Area (Inē): 4.80
Mount Type: Lug
Brake Pad Area (Inē): 6.36
Brake Pad Volume (Inē): 2.1
Rotor Type: Drilled
Front Rotors Included: No
Rear Rotors Included: Yes
Rotor Surface Finish: Black Oxide
Rotor Material: Steel
Rotor Outside Diameter: 10.75"
Rotor Width: 0.35"
Rotor Vane Count: Solid
Bedded: No
Dynamically Balanced: No
Hub Type: Solid Rotor Offset
Hub Material: Aluminum
Hub Finish: Bare
Hub Mount Style: Direct/Adapter
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Stud Diameter BC1: 1/2-20
Stud Diameter BC2: 1/2-20
Parking Brake Provision: No
Front Spindles Included: No
Master Cylinder Included: No
Brake Booster Included: No
Brake Lines Included: No
Hardware Included: Yes
Manufacturer: Wilwood Disc Brakes
Manufacturer's Part Number: 140-1019-BD
UPC: 889545008777
Warranty: Race Application, No warranty expressed or implied.
Weight:
Quantity: Sold as Kit
|
